There are a large number of students on the school campus, and it is difficult for the school to grasp the accurate personal information of each student, such as name, class and other information, and sometimes it is impossible to distinguish whether it is a student of the school or not. Especially in the severe situation of the new crown pneumonia epidemic, the management of a large number of student information is more important. Especially the management of students' health data, such as body temperature data.
In order to conveniently manage a large number of students' personal information, especially health data, SKYLAB has launched an electronic school card student information management Bluetooth solution based on Bluetooth technology. The purpose of this program is to quickly identify the personal information and health information of students in school, such as the student's name, class, body temperature and other information.
This solution can help schools strengthen the management of students' personal information, collect students' body temperature information and report it to the IoT cloud server, and view and manage it in the background.

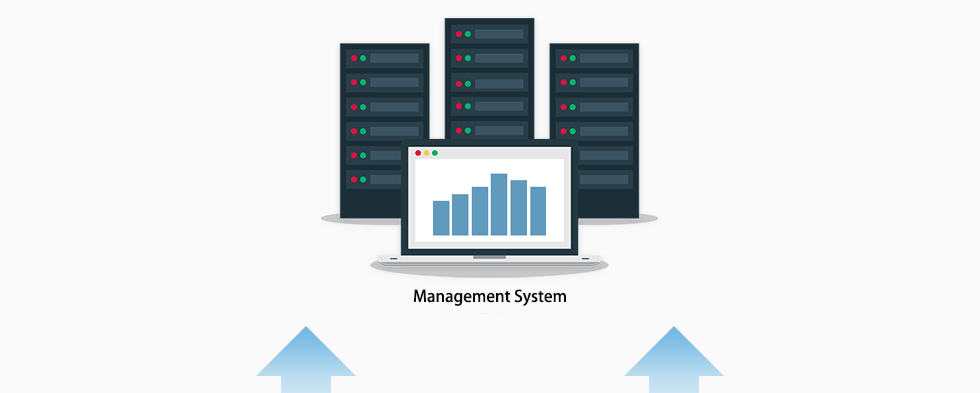

The electronic school card student information management solution is composed of a set of application software and Bluetooth hardware, as shown in the figure below.
Electronic school card student information management program:
It consists of four parts: terminal information display device Bluetooth electronic school card, 4G/5G Bluetooth gateway, data server, application software system (including supervision platform, data push, etc.).
Terminal equipment: Bluetooth student card VDB1608/Bluetooth watch VDB1618.
4G/5G Bluetooth gateway: SKYLAB's indoor 4G/5G Bluetooth gateway VDB2605, or IP67 waterproof, outdoor explosion-proof 4G/5G Bluetooth gateway VDB2607, VDB2609, VDB2610 can be selected according to the application scenario.
Deploy 4G/5G Bluetooth gateways in the activity area where students are located. Configure the display information of the electronic school card through the background management system, and then distribute the Bluetooth electronic school card to each student.
The process of data collection:
The Bluetooth gateway collects the information of the Bluetooth electronic school card within the signal coverage, and uploads it to the IoT cloud server through the 4G/5G mobile network. The school administrator can easily view and manage it in the background in real time.
The electronic school card student information management system solution is based on SKYLAB's star positioning system. Personnel positioning can be realized in the case of intensive installation of Bluetooth gateways. That is, the real-time position of each student can be located and viewed in the background. And can display and change personnel information.

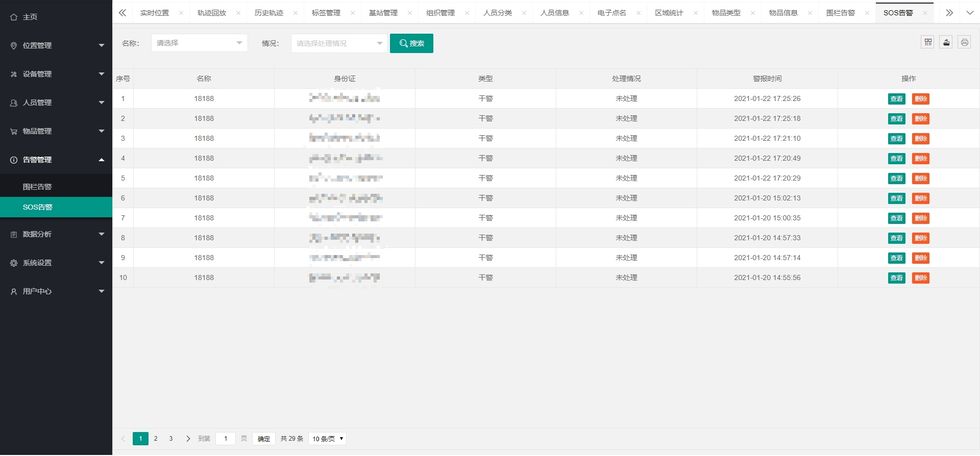

The administrator configures the display information for the selected Bluetooth electronic school card through the management system. The Bluetooth gateway acts as a communication bridge between the electronic school card and the management system. When the wearer of the electronic school card (or watch, etc.) measures the temperature, it will automatically report the body temperature data to the Bluetooth gateway, and the Bluetooth gateway will upload the body temperature data to the background management system. , the management system executes some special alarms based on the temperature value, as shown in the following figure.
(1) Equipment such as electronic school cards and Bluetooth gateways are easy to use and have strong practicability;
(2) The personal information of students can be displayed flexibly for easy configuration;
(3) The electronic school card is developed based on BLE low-energy Bluetooth, which can realize long standby time, a button battery can be used for half a year, and the battery can be easily replaced.
(4) Bluetooth watch can also measure body temperature, heart rate, etc.
