GNSS Module

SKG121D

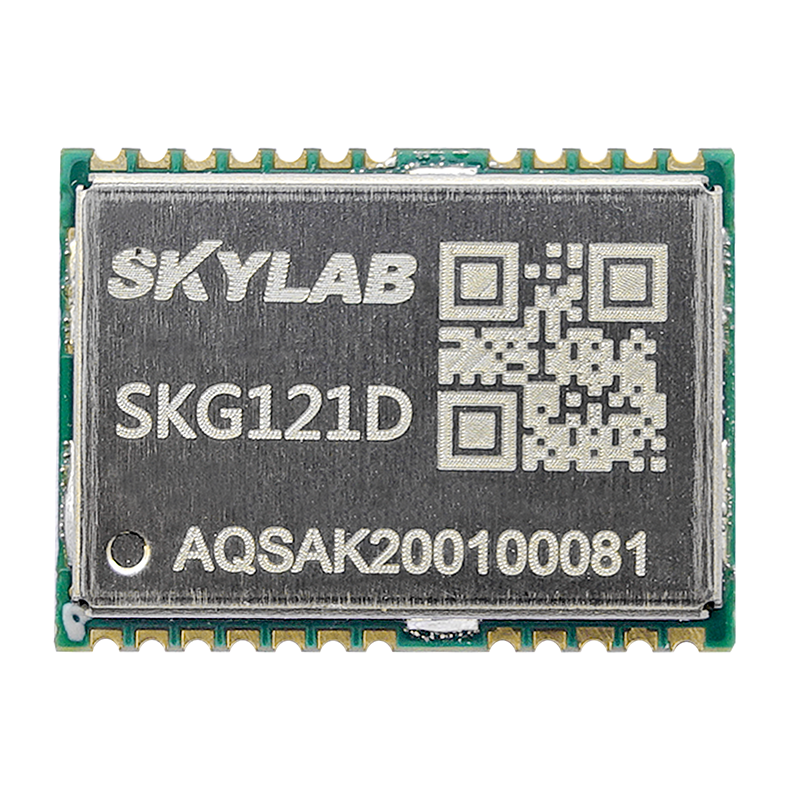

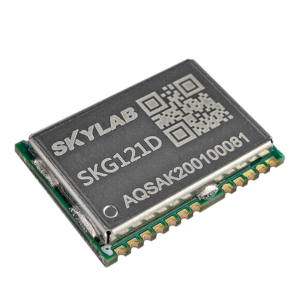

Navigation Positioning Dead Reckoning GNSS Module SKG121D

SKG121D is a single receiver module integrating GPS, BeiDou, GLONASS and Galileo systems. It is able to achieve the industry’s highest level of sensitivity, accuracy and TTFF with the lowest power consumption in a small-footprint lead-free package.

Read More
Receiver GPS,GLONASS,BDS,GALILEO,QZSS
Sensitivity -162dBM
Dimension(L×W×H) 16.2*12.2*2.4(mm)

SKG121D is a single receiver module integrating GPS, BeiDou, GLONASS and Galileo systems. It is able to achieve the industry’s highest level of sensitivity, accuracy and TTFF with the lowest power consumption in a small-footprint lead-free package. The embedded flash memory provides capacity for
storing user-specific configurations and allows for future updates.

The SKG121D module supports multiple positioning and navigation systems including autonomous GPS, BeiDou, GLONASS, Galileo, SBAS (including WAAS, EGNOS, MSAS and GAGAN), QZSS, DGPS, and AGPS.

Features:

◆ GPS/GLONASS/BDS/ GALILEO/QZSS receiver

◆ Ultra high sensitivity: -162dBm

◆ Extremely fast TTFF at low signal level

◆ Supports Dead Reckoning (DR) function

◆ ±25ns high accuracy time pulse (1PPS)

◆ SBAS (WAAS,EGNOS,MSAS,GAGAN)

◆Embedded with a 3-axis Gyroscope and 3-axis Accelerometer

◆ UART0: Supports baud rates from 4800bps to 115200bps; 115200bps by default

◆UART0 port is used for NMEA output and firmware upgrade

◆ Small form factor: 16.2 x 12.2 x 2.4mm

◆ FCC compliance

◆ RoHS compliance (Lead-free)

◆ CE certificated

Specification
Parameter Specification
Receiver Type GPS L1 C/A (1575.42MHz)
BeiDou B1 C/A (1561.098MHz)
GLONASS L1 C/A (1602.5625MHz)
Galileo
Sensitivity Tracking:-163dBm Typical
Reacquisition: -156dBm Typical
Acquisition: -147dBm Typical
Accuracy Position:<1.8m CEP* @-130dBm
Velocity:0.1m/s without SA
Timing (PPS):25ns RMS
Acquisition Time Cold Start:<32s(Typical Open Sky)
Warm Start:<25s
Hot Start:<1.5s
Re-Acquisition:<1s
Assisted GPS support Support
Power Consumption Tracking:TBD
Acquisition:TBD
Navigation Data Update Rate Max 10Hz Default 1Hz
Operational Limits Altitude:Max 18,000m
Velocity:Max 515m/s
Acceleration:4.5G
Application

◆LBS (Location Based Service)

◆PND (Portable Navigation Device)

◆Vehicle navigation system

◆Mobile phone

◆Main chip pass AEC-Q100 certification

◆ IATF16949 quality control system

Q&A
1. who are we?
We are based in Guangdong, China, start from 2006,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(15.00%),Northern Europe(14.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),South America(4.00%),Southeast Asia(3.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
