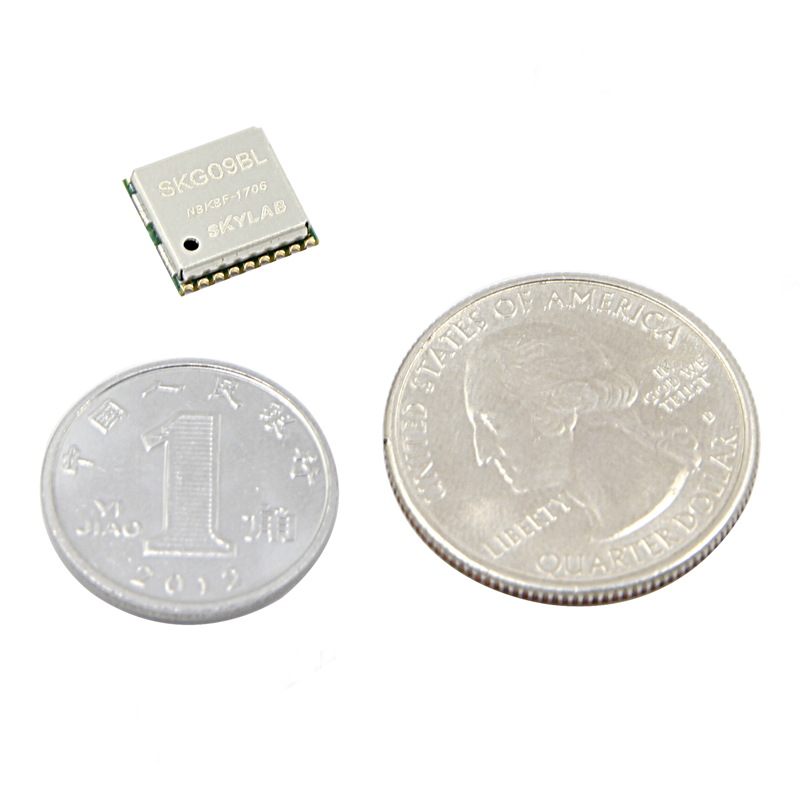

MT3337 High Sensitivity GPS Module SKG09BL

The SKG09BL is a complete GPS engine module that features super sensitivity, ultra low power and small form factor.

Read More
Chip MT3337
Receiver Type GPS
Dimension(L×W×H) 110.1*9.7*2.2(mm)

The SKG09BL is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

It is based on the high performance features of the MediaTek MT3337 single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.

Features:

◆Ultra high sensitivity: -165dBm

◆Extremely fast TTFF at low signal level

◆Built-in 12 multi-tone active interference canceller

◆ Ultra low power consumption

◆±10ns high accuracy time pulse (1PPS)

◆ NMEA Output:GGA,GSA,GSV,RMC,VTG,GLL

◆Support QZSS

◆ Advanced Features: Aiding EPO;EASY

◆Small form factor: 10.1 x 9.7 x 2.2mm

◆ FCC compliance

◆ CE certificated

◆ RoHS certificated (Lead-free)

Specification
Parameter Specification
Receiver Type L1 frequency band, C/A code, 22 Tracking / 66 Acquisition-Channel
Sensitivity Tracking:-165dBm Typical
Acquisition:-148dBm Typical
Accuracy Position:3.0m CEP50 without SA(Typical Open Sky)
Velocity:0.1m/s without SA
Timing (PPS):10ns RMS
Acquisition Time Cold Start:23s(Typical Open Sky)
Warm Start:2~3s
Hot Start:1s
Re-Acquisition:<1s
Assisted GPS support EPO
Power Consumption Tracking:16mA @3.3V Typical
Acquisition:19mA @3.3V
Navigation Data Update Rate Max 10Hz  Default 1Hz
Operational Limits Altitude:Max 18,000m
Velocity:Max 515m/s
Acceleration:Less than 4g
Application

◆LBS (Location Based Service)

◆PND (Portable Navigation Device)

◆Vehicle navigation system

◆ Mobile phone
