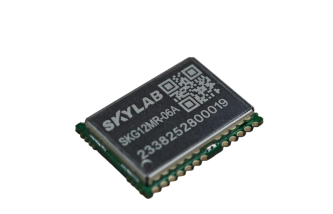

SKG12MR-06A Dual-Band Full-Constellation RTK Positioning Module

2026-04-23/ By Admin

In applications such as precision drone operations, high-precision vehicle navigation, and handheld RTK surveying, positioning accuracy and reliability directly determine the core value of the device. Traditional single-band, single-system modules are prone to ionospheric delay and multipath effects in complex environments, resulting in noticeable positioning jitter that fails to meet centimeter-level requirements. On the other hand, high-end multi-band RTK modules are often bulky and power-hungry, limiting their use in compact devices. How can you achieve dual-band, multi-system, centimeter-level RTK positioning under the constraints of small size and low power consumption? The SKG12MR-06A dual-band full-constellation RTK module delivers the ideal answer.

1. Why Do You Need a Dual-Band Multi-System RTK Module?

• Ionospheric Delay Error: Single-band signals experience delays through the ionosphere that cannot be fully corrected. Dual-band signals can effectively correct these errors by combining observations, significantly improving positioning accuracy.
• Satellite Availability: Multi-system joint positioning (GPS + BeiDou + Galileo + QZSS) doubles the number of visible satellites, ensuring high availability even in urban canyons or under tree cover.
• Centimeter-Level Requirements: Precision agriculture, drone mapping, and autonomous driving demand horizontal errors below 2 cm – something traditional single-point positioning cannot achieve.

The SKG12MR-06A meets these demands with dual-band, full-constellation reception and RTK technology.

2. Six Core Advantages – Redefining High-Performance RTK Modules

2.1 Dual-Band, Multi-System, Full-Constellation Signal Reception

The module supports both L1 and L5 bands, covering the following satellite systems:

• GPS: L1 C/A, L5
• BeiDou: B1I, B1C, B2A
• Galileo: E1, E5a
• QZSS: L1, L5
• GLONASS: G1
• SBAS: L1
• IRNSS: L5

With up to 200 tracking channels, it provides abundant satellite signals anywhere in the world.

2.2 Centimeter-Level RTK Accuracy for Professional Applications

• RTK Fixed Solution Accuracy: Horizontal ≤ 1 cm + 1 ppm, Vertical ≤ 1.5 cm + 1 ppm
• Convergence Time: Typically reaches fixed solution from float solution within 60 seconds
• Single-Point Positioning Accuracy: Horizontal ≤ 1.0 m CEP, Vertical ≤ 2.0 m CEP

Supports RTCM 3.x differential data via UART interface, compatible with CORS stations or self-built base stations.

2.3 High Sensitivity & Fast Start-Up – No Signal Loss in Complex Environments

• Tracking Sensitivity: -165 dBm, Re-acquisition -159 dBm, Cold Start -148 dBm
• Start-Up Time: Cold start ≤ 28 s, Hot start ≤ 1 s, AGPS-assisted ≤ 1.5 s

Maintains fast positioning and continuous tracking even under weak signal conditions (e.g., tree shade, between buildings).

2.4 Low Power Consumption – Extends Battery Life

• Continuous L1+L5 dual-band operation: Only 40 mA @ 3.3 V
• Two sleep modes: Enter sleep via serial command (wake by any data), or cut VCC while keeping V_BCKP for fast recovery

Ideal for battery-powered devices such as drones and handheld terminals.

2.5 Ultra-Compact Size – Compatible with Mainstream Packages

• Dimensions: 16.4 mm × 12.2 mm × 2.4 mm, weight only 1.6 g
• SMD surface-mount package, pin-compatible with mainstream GNSS modules for drop-in upgrades
• Operating temperature: -40°C to 85°C, suitable for harsh outdoor environments

2.6 Rich Interfaces & Flexible Configuration

• Interfaces: Two UART ports (up to 6 Mbps), PPS output, I²C, GPIO
• Protocols: NMEA-0183 and RTCM 3.x, data refresh rate configurable from 1/2/5/10/20 Hz
• Supports AGNSS assisted positioning, serial command configuration with auto-save

3. Technical Specifications at a Glance

4. Typical Applications

• Drones & Aerial Mapping: Centimeter-level RTK positioning for survey drones enabling ground-control-point-free mapping; precise route tracking for agricultural drones
• High-Precision Vehicle Navigation: Autonomous driving test vehicles, HD mapping data collection – stable positioning in urban canyons
• Handheld RTK Devices: Compact surveying terminals, handheld GIS collectors – lightweight and low-power for extended field work
• Robotics & AGVs: Centimeter-level autonomous navigation for outdoor inspection robots and logistics AGVs
• Precision Agriculture: Tractor auto-steering, variable-rate fertilization – RTK fixed solution ensures row spacing error < 2 cm

5. Development Support & Customization

SKYLAB provides complete reference designs, layout guides, and technical support for the SKG12MR-06A to help customers accelerate hardware integration and antenna matching. The module supports firmware upgrades and parameter configuration, with custom output protocols, refresh rates, and sleep strategies available upon request. Evaluation kits are also available for real-world RTK performance testing.

Empower Mass Adoption of High-Precision Positioning with Dual-Band RTK Technology

The SKG12MR-06A dual-band full-constellation RTK positioning module packs flagship performance – L1+L5 dual-band, multi-constellation, centimeter-level RTK – into a tiny 16.4 × 12.2 mm footprint. It allows drones to operate confidently over urban areas, autonomous vehicles to navigate precisely in complex traffic, and every high-precision device to rely on a robust “positioning heart.”
