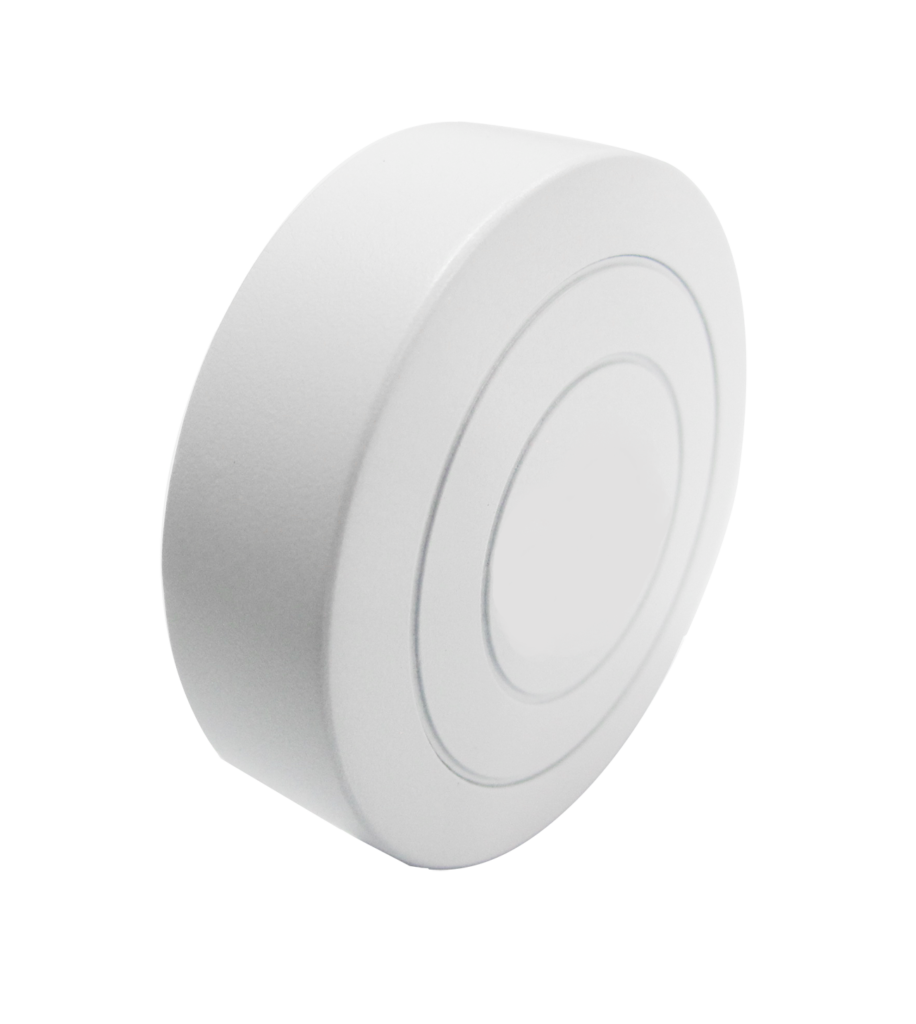

BLE5.0 Low Power Bluetooth Beacon VDB01

VDB01 is a Bluetooth Beacon device. It uses a broadcasting protocol which is based on BLE (Bluetooth Low Energy ). VDB01 broadcasts its general configure parameters like UUID, Major, Minor, RSSI etc. to surroundings over 37, 38 and 39 BLE channels continuously and non-directionally .

Read More
Chip solution ST17H65
Advertise Range up to 70 Meters
Battery CR2477 1000 mAh

VDB01 is based on Lenze Tech Bluetooth 5.0 chip, ST17H65. It reserves an accelerometer and a temperature & humidity sensor(not mounted by default).

BLE5.0 Low Power Bluetooth Beacon VDB01
BLE5.0 Low Power Bluetooth Beacon VDB01


◆Low Power Consumption

◆Small,Light-weight,Beautiful appearance

◆Flexible Application

◆Easy to deploy(use thick sticky tape)

◆Advertise Range up to 70 Meters

◆RoHS compliance (Lead-free)

◆FCC,CE compliance


Hardware Features
Model VDB01
Antenna Type PCB Antenna
Battery CR2477 1000 mAh
Voltage 1.8~3.1 V
Dimension(D×H) 47.5*16.1mm
Wireless Features
Wireless Standards Bluetooth ®5.0
Frequency Range 2400MHz——-2483.5MHz
Data Rates 125kbps/250kbps/500kbps/1Mbps/2Mbps
Modulation Technique GFSK
Wireless Security AES
Transmit Power Tx Power -20 to +4 dBm in 4 dB Steps
Sensitivity -97dBm @1Mbps BLE
Work Mode Peripheral
Environment Operating Temperature: -20℃~70℃
Storage Temperature: -20℃~70℃
Operating Humidity: 10%~90% Non-condensing
Storage Humidity: 5%~90% Non-condensing

VDB01 is powered by a CR2477 button battery (replaceable). The battery life is related to the broadcast parameters. The standby time can be up to 2 years under the default configuration (500ms broadcast interval, 0dBm broadcast power). See the following table for details.

Broadcast power Coverage Broadcast interval Standby time (years)
4dBm 70m 100 0.34
200 0.67
400 1.32
500 1.64
800 2.54
1000 3.12
0dBm 50 100 0.45
200 0.88
400 1.71
500 2.12
800 3.26
1000 3.99
-4bDm 35m 100 0.48
200 0.95
400 1.84
500 2.27
800 3.5
1000 4.26


◆Indoor Positioning

◆Information Push


◆WeChat Shake
