UWB Tag

VDU1506

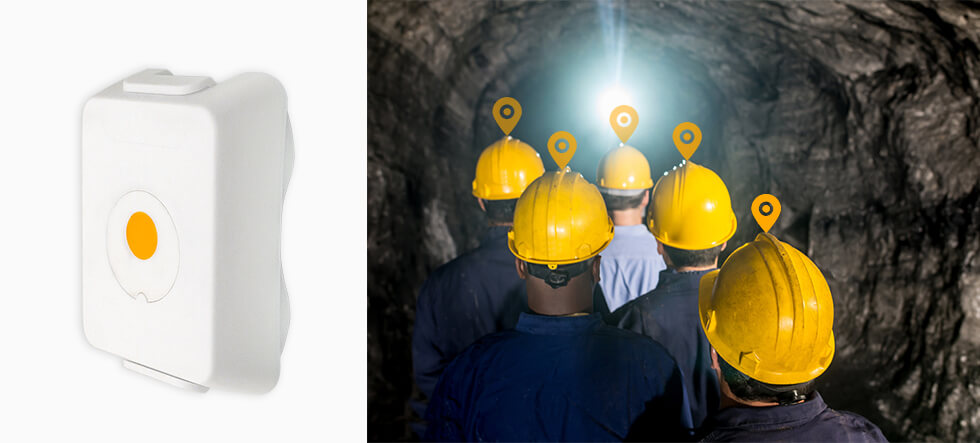

Long Distance UWB Positioning Safety Helmet Tag VDU1506

UWB positioning tag VDU1506, TWR ranging and positioning up to 1000 meters. Based on the DW1000 solution, it supports TDOA positioning and TWR ranging. In addition, with the SOS button, IP66 waterproof.

Read More
Chip  nRF52832/DW1000
TWR ranging 1000 meters
Location Algorithm  TDOA/TWR

The VDU 1506 is a safety helmet type UWB positioning tag that is used by screws or 3M glue.VDU1506 has built-in high-gain PA and LNA. It is a transceiver enhanced uwb positioning tag and uwb ranging tag that supports TWR ranging. The main control chip adopts Nordic nRF52832 to realize low-power standby, and the transceiver control of positioning packets. The radio frequency chip adopts DW1000 to send or receive TDOA/TWR data packets of UWB. VDU1506 can realize high-precision ranging or positioning of wearing personnel under the analysis of uwb base station.

The uwb Tag VDU1506 integrates an acceleration speed sensor inside. Intelligently switch the positioning frequency when people are moving and stationary to achieve lower power consumption. This uwb label is also equipped with an SOS button, which can realize the emergency call function. It is used for safety monitoring occasions, such as personnel positioning and monitoring in factories, mining areas and other places. The uwb label VDU1506 shell adopts ultrasonic lamination technology to achieve IP66 waterproof design. And it is equipped with a white buckle, which can be locked with the main body of the uwb label, which is convenient for personnel to wear.

In addition, there is a motor inside the tag, which can be used with the electronic fence on the uwb base station to realize the safety warning function of approaching/entering a specific area, the social distance warning function of personnel, and it can also be used to receive the emergency evacuation information sent by the base station to realize smart construction sites and factory workers Location security monitoring, etc.

Technical
Working Parameter Description
Refreshing frequency when moving 1Hz
Refreshing frequency when still 0.3Hz
Power consumption Standby: 50uA

TX standard power: 300mA

RX: 70mA

Precision CEP90: 30cm
General using time when fully charged

TWR 4days(Max TX Power)

Full charge time

About 3.5 hours

Positioning distance

TWR Ranging: 1000m (Max TX power)

 level of protection IP66
Battery capacity 1000mAh

Temperature

Operational: -20~80℃

Charging: 0~45℃

Storeage: -20~40℃ (<3month)

Dimension

57.4mm*38.8mm*21mm(±0.5mm)

UWB Parameter
Frequency

Default 3.9936±0.25GHz(with PA/LNA)

support all channels ch1-5(Without PA)

Protocol

IEEE 802.15.4-2011 UW

BLE Parameter

Default off after 30 seconds.
RAM and ROM

512 kB flash/64 kB RAM

Protocol

Support BLE5.0 (No Longrange)

Frequency

2400MHz---2483.5MHz

Power Adapter Parameter
Output DC 5V /1A
Application

UWB positioning helmet label VDU1506 is often used for personnel positioning in construction areas.

◆Smart construction site

◆Coal mine

◆Tunnel

◆Underground pipe gallery

◆Metro Rail Transit

◆Mine

Q&A
1. who are we?
We are based in Guangdong, China, start from 2006,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(15.00%),Northern Europe(14.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),South America(4.00%),Southeast Asia(3.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
