UWB Module

SKU611

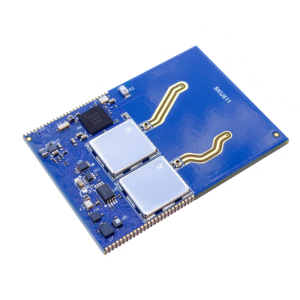

DW1000 | nRF52840 PDOA System UWB Module SKU611

The SKU611module is design for UWB PDOA application ,It integrates two DW1000 IC and a NRF52840 BLE IC.

Read More
Chip UWB: DW1000 BLE :nRF52840
Frequency 6.240~6.739GHZ
Dimension(L×W×H) 57.0 mm x 41.0 mm x 3.8 mm
Free A Quote comment

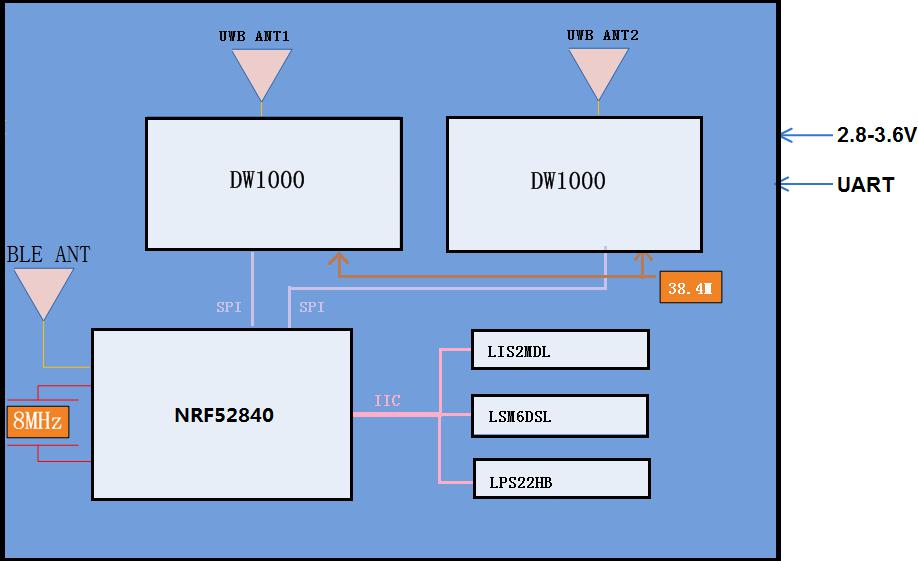

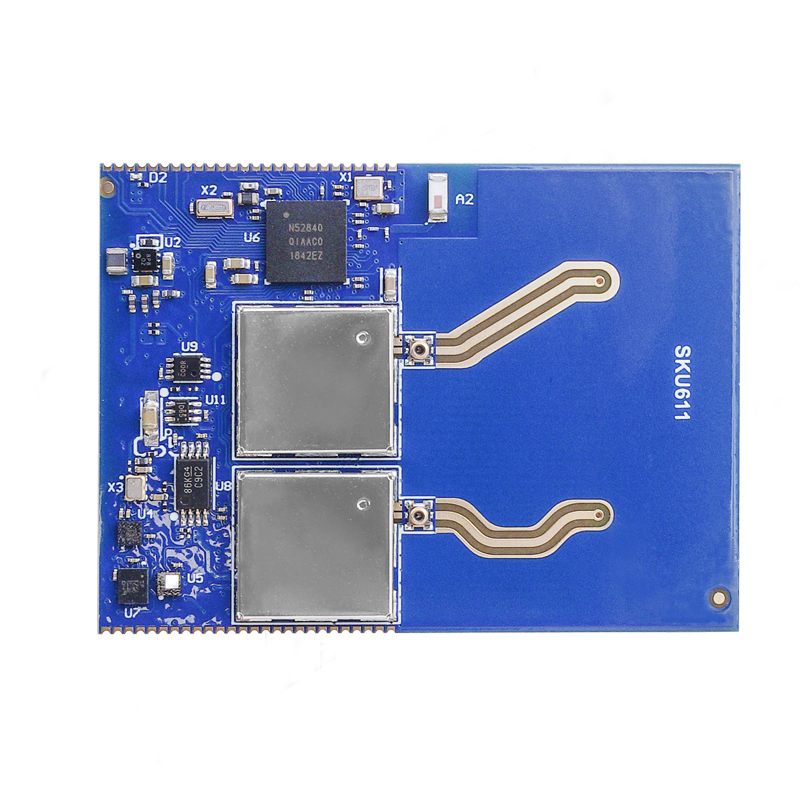

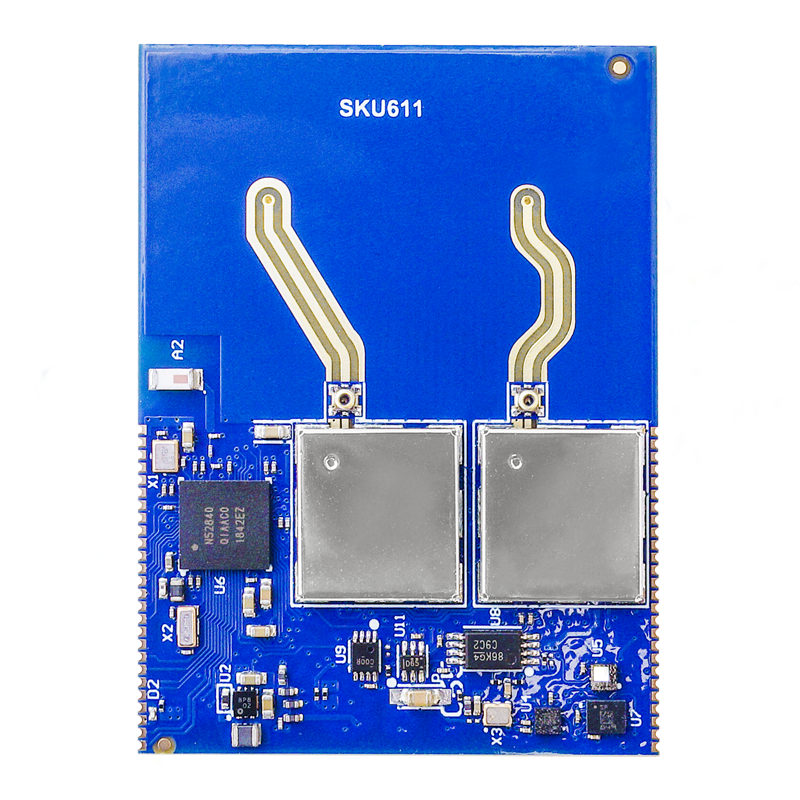

The SKU611module is designed for the UWB PDOA application,It integrates two DW1000 IC and a NRF52840BLE IC. The specially designed of UWB antenna made it achieve perfect performance in a TDOA system.

Features:

◆ IEEE 802.15.4-2011 UWB compliant.

◆ Nordic Semiconductor nRF52840.

◆ Bluetooth® connectivity.

◆ Bluetooth® chip antenna.

◆10 DoF Sensors – Accel, Gyro, MAG, BAR.

◆Supply voltage: 2.8 V to 3.6 V.

◆Size: 57.0 mm x 41.0 mm x 3.8 mm.

Technical
Basic Parameters
Operating Voltage 2.8V~3.6V
Module Size 57.0mm x41.0mm x 3.8mm
Working Temperature -30℃~85℃
Storage Temperature -40℃~85℃
UWB Wireless parameters
Frequency 6.240~6.739GHZ（default），compliant 3.244GHz-6.998GHz
Channel support Ch1-5，defaultCh5
Application

◆ Follow me applications, Drones, Robots, AGV .

◆ Indoor navigation and location.

◆ Robotics, sports, tracking
