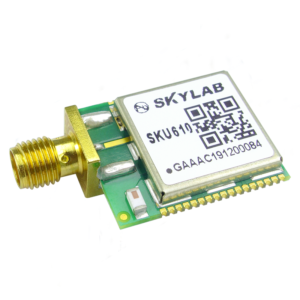

The SKU610 module is based on Decawave's DW1000 Ultra-Wideband (UWB) transceiver IC, whichisanIEEE802.15.4-2011 UWB implementation.
Read More| Chip | UWB: DW1000 BLE :NRF52832 |
| Built-in | acceleration sensor |
| Dimension(L×W×H) | 19mm x 23mm x 3.2mm |
The SKU610 module is based on Decawave's DW1000 Ultra-Wideband (UWB) transceiver IC, whichisanIEEE802.15.4-2011 UWB implementation. It chose an external antenna connector, which can help users to match the different UWB antennas. Our module integrates all RF circuitry of NRF52832 and a 2.4GCeramic antenna, User can use the BLE function easily.
Features:
◆ Ranging accuracy to within 10cm.
◆ 6.8 Mbps data rate.
◆ IEEE 802.15.4-2011 UWB compliant.
◆ Nordic Semiconductor nRF52832.
◆ Bluetooth® connectivity.
◆ Bluetooth® chip antenna.
◆ Motion sensor: 3-axis accelerometer.
◆Current consumption optimized for low power sleep mode: <15μA.
◆Supply voltage: 2.8 V to 3.6 V.
| Parameter | |
| Operating temperature | -40-85˚C |
| Supply voltage VCC | 2.8-3.6V |
| Voltage on VDDIO | 3.7-3.9V |
| Chip | UWB: DW1000 BLE :NRF52832 |
| Accuracy | Static ranging accuracy up to 10cm |
| Max data rate | 6.8 Mbps |
| Size | 19mm x 23mm x 3.2mm |
◆ Healthcare (locate assets, patients & staff) .
◆ Industrial (asset-tracking, factory automation).
◆ Retail (security, navigation, customer analytics).
◆ Consumer (connected home, sports analytics).
