Animal Locator Beacon

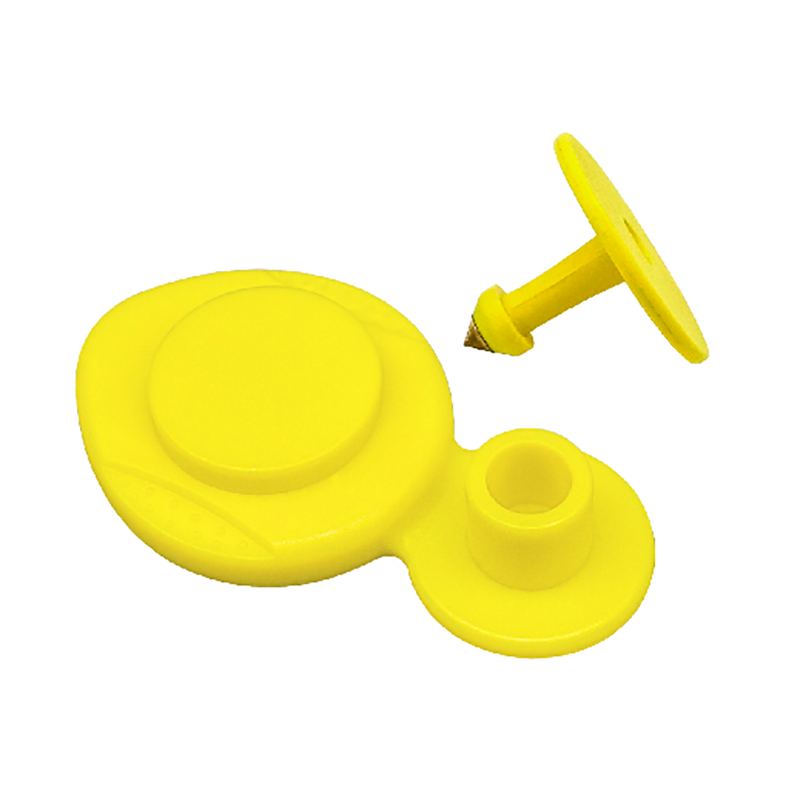

Animal Cattle Sheep Horse Locator Tracking Ear Tag Bluetooth Beacon VDB06

VDB06 is a asset label Bluetooth beacon with a function to prevent disassembly.

Read More
Wireless Bluetooth®4.2
Data Rates 1Mbps
Dimension 33.9*36.4*21.9mm

VDB06 is a asset label Bluetooth beacon with a function to prevent disassembly. Its broadcast protocol conforms to bluetooth BLE broadcast iBeacon (Apple) protocol. It is usually installed in a suitable location(For example, on the ears of larger animals, such as cattle and horses.), periodically broadcast to its surroundings, so that other Bluetooth devices such as Bluetooth gateways can scan its broadcast content and calculate the location information. It is usually not connected by other BLE host devices, but can be connected through mobile APP, and modify its broadcast parameters and other cont.

VDB06 Internal Modules

VDB06 supports step counting function to know the movement and location of marked animals in real time. It is equipped with a button lithium metal battery power.

Product Features

◆ Low Power Consumption

◆ Flexible application

◆ Easy to deploy

◆ Advertise Range up to 70 Meters

◆ RoHS, FCC,CE complianc


▲Bluetooth beacons are used with Bluetooth gateway VDG01

The Bluetooth ear tag VDB06 is commonly used in the location management of pigs, cattle, sheep, horses and other animals in animal husbandry. Smart bluetooth ear tag VDB06 can collect animal exercise data. The temperature acquisition function needs to be customized. The data collected by the Bluetooth base station VDG01 is uploaded to the cloud server through the 4G network.

Users can log in to the monitoring platform through a computer or mobile APP to monitor in real time. She can analyze data such as the number, location, and signs of animals such as pigs, cattle, and sheep.

Hardware Features
Dimension(L×W×H) 33.9*36.4*21.9mm
Battery CR2032WT
Wireless Standards Bluetooth®4.2
Frequency Range 2400MHz---2483.5MHz
Data Rates 1Mbps(Bluetooth ® 4.2
Modulation Technique PWM
Wireless Security AES HW Encrypti
Transmit Power -8, -4, 0, +4d
Sensitivity -94dBm at 1Mbps BL
Work Mode  iBeacon
Storage temperature -40°C to 85°C
Consumption 25uA(Default Counting step)

15uA(No Counting step)

Battery life
Broadcast power(dBm) Coverage(m) Broadcast interval(ms) Battery life (months)
4 70 1000 (step counting) 10
10000(steps not counted) 22
0 50 1000 (step counting) 12
10000(steps not counted) 25

(1) Animal positioning of pigs, cattle, sheep and horses

(2) Electronic fence early warning, SOS early warning information, to prevent animal loss

(3) Integrate step counting motion information to monitor the daily activity of animals
