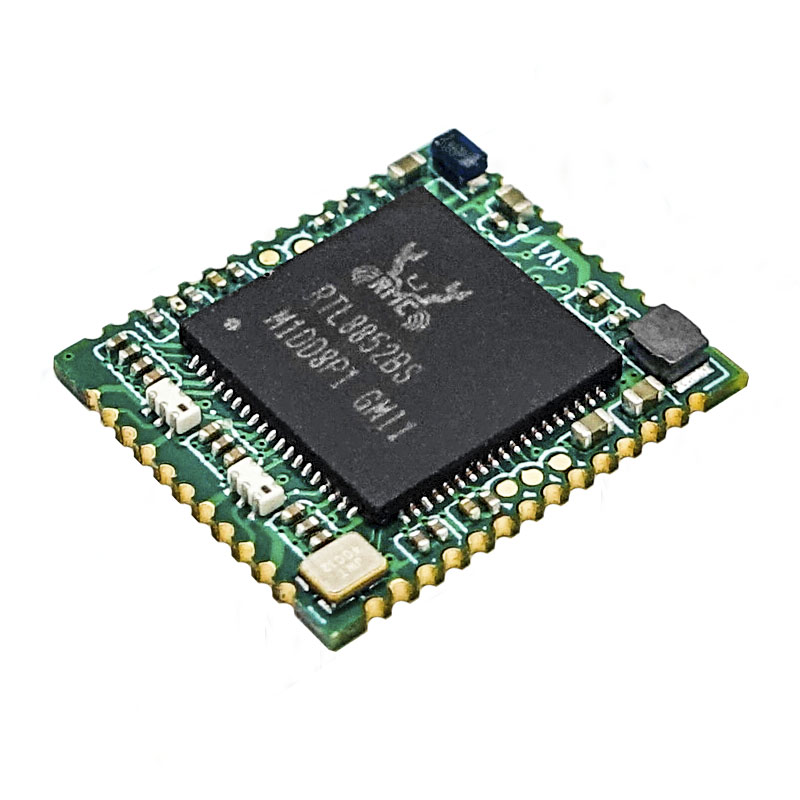

The WG244 is a highly integrated WIFI module that support 2-stream 802.11ax solutions
Read More| Function | Wi-Fi/Bluetooth |
| WLAN | IEEE 802.11 b/g/n/ac/ax |
| Dimension | 13 x 15 x 2.3 mm |
The WG244 is a highly integrated WIFI module that support 2-stream 802.11ax solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) and integrated Bluetooth 5 USB network interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. The WG244 provides a complete solution for a high-performance integrated wireless and Bluetooth device. This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is
specifically developed for Smart phones and Portable devices.
Product Features：
General
◆ Support 802. 11ac 2x2,Wave-2 compliant with RX MU-MIMO
◆ Backward compatible with 802. 11a/n/ac devices while operating at 802. 11ax data rates. IEEE 802. 11a/b/g/n/ac/ax compatible WLAN
◆ IEEE 802. 11i (WPA, WPA2, WPA3). Open, shared key, and pair-wise key authentication services
◆ IEEE 802. 11ax MIMO OFDM/OFDMA,IEEE 802. 11ac MIMO OFDM,IEEE 802. 11n MIMO OFDM
PHY Features
◆ CMOS MAC, Baseband PHY and RF in a single chip for IEEE 802. 11a/b/g/n/ac/ax compatible
WLAN
◆ Maximum PHY data rate up to 286.8Mbps using 20MHz bandwidth, 573.5Mbps using 40MHz
bandwidth, and 1201Mbps using 80MHz bandwidth
Bluetooth Features
◆ Complies with SDIO for WLAN and BT controller
◆ Compatible with Bluetooth v2. 1+EDR
◆ Support Bluetooth 5system (BT 5.2 Logo Compliant)
◆Dual Mode support: Simultaneous LE and BR/ED
| Hardware Features | |
| Module | WG244 |
| Product Description | Support Wi-Fi/Bluetooth function |
| WLAN Standard | IEEE 802.11 b/g/n/ac/ax Wi-Fi compliant |
| Frequency Range | 2.400 GHz ~ 2.4835 GHz z (2.4 GHz ISM Band) |
| Number of Chan | 2.4GHz：Ch 1 ~ Ch 14 |
| Dimensions(L×W×H) | 13 x 15 x 2.3 mm |
| Wi-Fi Interface | SDIO |
| BT Interface | SDIO |
| OS supported | Android /Linux/ iOS / |
| Operating temperature | - 30°C to 70° |
| Storage temperature | -40°C to 85°C |
| Spectrum Mask | Meet with IEEE standard |
