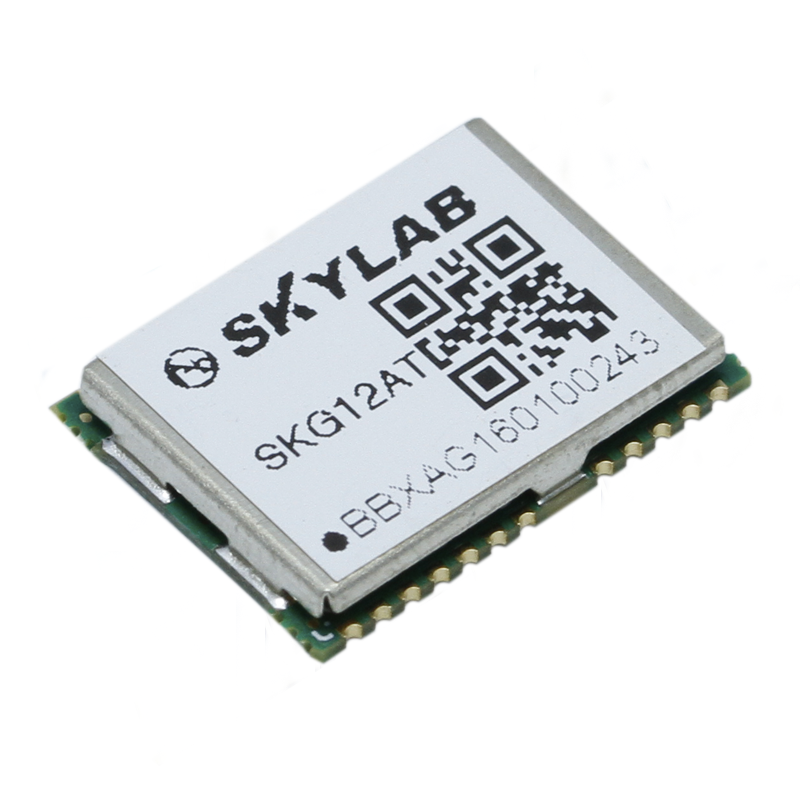

Low Power Consumption GPS Timing Module SKG12AT

The SKG12AT is a complete GPS engine module that features super sensitivity, ultra low power and small form factor.

Read More
Timing (PPS) 10ns RMS
Receiver Type 18mA-23mA
Dimension(L×W×H) 16*12.2*2.4(mm)

The SKG12AT is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

It is based on the high performance features of the MediaTek single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.

Features:

◆ Ultra high sensitivity: -165dBm

◆ Extremely fast TTFF at low signal level

◆ Built-in 12 multi-tone active interference canceller

◆ Ultra low power consumption

◆ ±10ns high accuracy time pulse (1PPS)

◆ Advanced Features: AlwaysLocate; AIC; EPO;EASY

◆ QZSS, SBASS (WAAS,EGNOS,MSAS,GAGAN)

◆ Indoor and outdoor multi-path detection and compensation

◆Small form factor: 16.0 x 12.2 x 2.4mm

◆RoHS compliant (Lead-free)

Specification
Parameter Specification
Receiver Type L1 frequency band,  C/A code,  22 Tracking / 66 Acquisition-Channel
Sensitivity Tracking -165dBm Typical
Acquisition -148dBm Typical
Accuracy Position 3.0m CEP50 without SA(Typical Open Sky)
Velocity 0.1m/s without SA
Timing (PPS) 10ns RMS
Acquisition Time Cold Start 23s(Typical Open Sky)
Warm Start 2-3s
Hot Start 1s
Re-Acquisition <1s
Power Consumption Tracking 18mA @3.3V Typical
Acquisition 23mA @3.3V
Navigation Data Update Rate Max 10Hz Default 1Hz
Operational Limits Altitude Max 18,000m
Velocity Max 515m/s
Acceleration Less than 4g
Application

◆  LBS (Location Based Service)

◆  PND (Portable Navigation Device)

◆  Vehicle navigation system

◆  Mobile phone
