Bluetooth Beacon

VDB1612

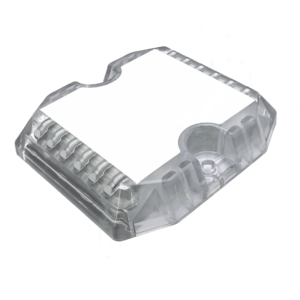

Road Spikes Bluetooth Positioning Beacon VDB1612

VDB1612 is a Bluetooth spike beacon.The beacon USES the BLE low power Bluetooth broadcasting method and USES its supported common properties profile to continuously send astatic broadcast packets over channels 37, 38, and 39.

Read More
Battery life 10 years
Signal coverage 100 meters
Protection level IP68

VDB1612 is a Bluetooth spike beacon.The beacon USES the BLE low power Bluetooth broadcasting method and USES its supported common properties profile to continuously send astatic broadcast packets over channels 37, 38, and 39.The broadcast content can be read by the APP "Skylab_xbeacon" developed by our r&d team, including UUID, Major, Minor, RSSI and other information.

Features:

◆Low power consumption, support switch line shear work

◆High protection grade, strong and durable, easy to install on the ground

◆APP can flexibly configure parameters

◆OTA Wireless upgrade

◆The maximum broadcast range is 100 meters

◆RoHS compliant (lead-free)

◆In line with the FCC, CE

Specification
Model VDB1612
Type of antenna PCB antenna
Battery ER18505 single section 3800 mAh, with a maximum of 2 sections
Nominal voltage 3.6 V
Dimension L:110(±2)mm * W:105(±2)mm * H:23.8(±0.5)mm
Wireless standards BLE ® 4.2
Frequency domain 2400MHz——-2483.5MHz
Data rate 250 kbps / 1 Mbps / 2 Mbps
Modulation system GFSK
Wireless security AES
Transmission power -20 - 4 dBm
Sensitivity -93dBm @ 1Mbps BLE
Workig mode iBeacon / Eddystone

VDB1612 is calculated based on a single ER18505 3800mAh cell. The battery life of the road spike base station VDB1612 is as shown in the following table:

Broadcast power(dBm) Coverage(m) Broadcast interval(ms) Standby time (days)
4 80 100 436
400 1703
500 2112
900 3683
1000 4061
0 50 100 652
400 2514
500 3106
600 3683
-4 30 100 866
200 1703
400 3300
500 4062
Application

◆Indoor positioning

◆Wisdom parking

◆Information push

◆identification

◆WeChat, shake

Q&A
1. who are we?
We are based in Guangdong, China, start from 2006,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(15.00%),Northern Europe(14.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),South America(4.00%),Southeast Asia(3.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
