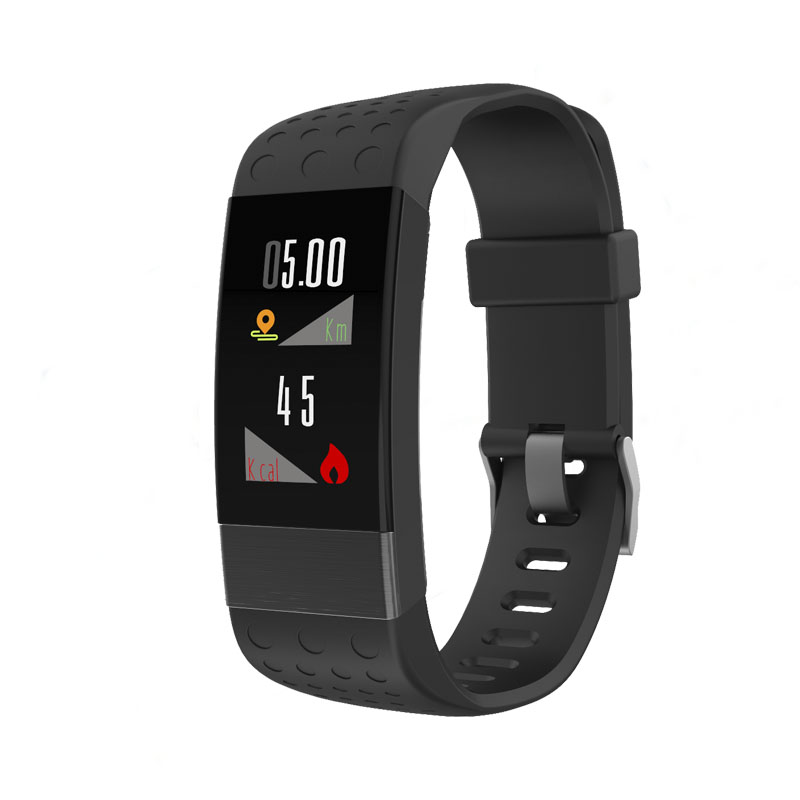

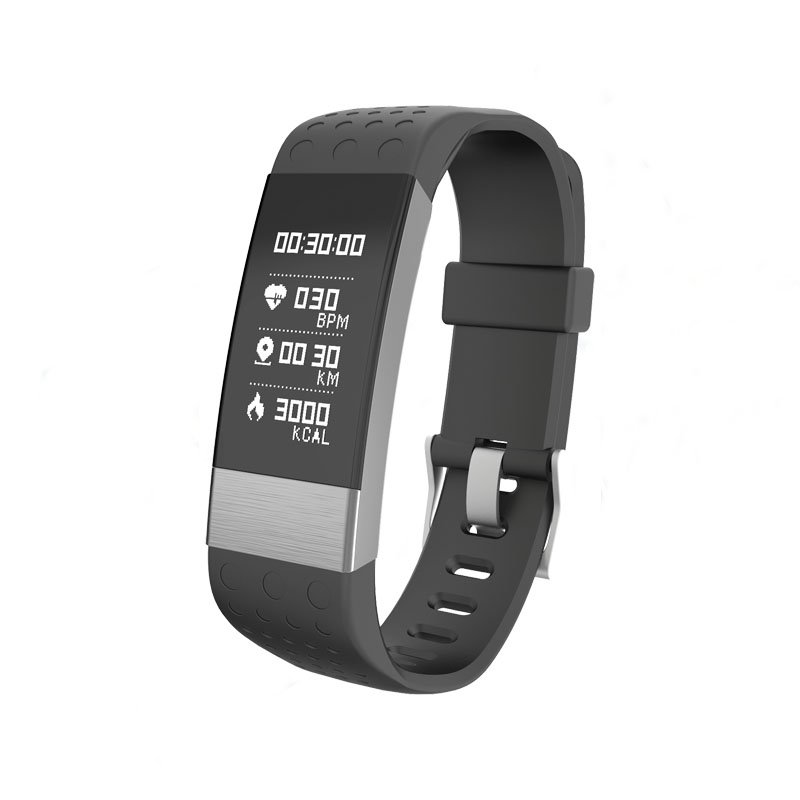

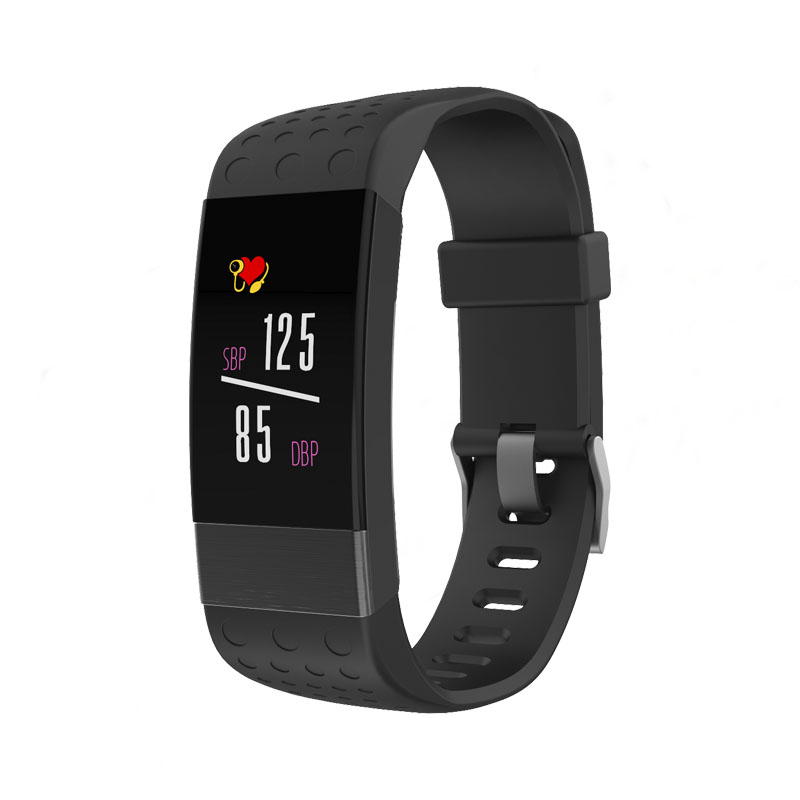

nRf52832 Bluetooth Positioning Wristband/Bracelet Beacon VG08

VG08 is a bracelet type beacon, it is based on Bluetooth 4.2nrf52832 chip, RAM running memory is 64KB, Flash is 512KB.

Read More
Chip Nordic nRF52832
Wireless Standard Bluetooth 4.2
Battery Capacity 60mAh

VG08 is a bracelet type beacon, it is based on Bluetooth 4.2nrf52832 chip, RAM running memory is 64KB, Flash is 512KB. It is often used in Bluetooth positioning solutions, and can also be used for elderly positioning and health monitoring in nursing homes.


Class Functions Description
Basic Parameters RAM 64kB
Device size(mm)without strap 40.2mm*18.1mm*13.0mm
Weight Device without strap 8.4g
Weight strap 7.0g
Body temperature function description Skin temperature detection.High thermal conductivity temperature sensor with built-in algorithm.the skin temperature of the wrist part Measurement range 32 degrees Celsius - 42 degrees Celsius
 Hardware parameters Chipset Supplier NORDIC NRF52832
APP IXFIT(Download at App Store or Google Play Store)
App System reqirement Android5.0 or Above、IOS9.0 or Above
FLASH memory 512K
screen size 0.87 inch
Resolution 128*32
touch Type Single point
Display type PMOLED
Connection parameter Bluetooth Bluetooth 4.2
Sensor G-Sensor High-precision sensor, working with low power consumption
Body Temperature YES
Blood Oxygen Saturation (SpO2) YES
Heart Rate YES
Battery Battery Type Polymer lithium battery
Charging Method USB Direct charge
Capacity 60mah
Other Partmeter Waterproof Level IP68
Charging time 2 hours
Battery life 7*24hours(Steps +Bluetooth+HeartRate Always on)
Strap colors Multi colors
Material Case: Plastic Wristband: TPU
Package Size Packing box size(L*W*H)MM 98*98*40mm
Package weight(g) 92g(Including device+ strap + charging accessories)
Carton box size(L*W*H)CM 510*420*230mm
Carton weight(KG) 10.2
Packing quantity(pcs) 100pcs
1. who are we?
We are based in Guangdong, China, start from 2006,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(15.00%),Northern Europe(14.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),South America(4.00%),Southeast Asia(3.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
