non-demolition asset label Bluetooth beacon VDB09
Read More| Working Temperature | -40℃~85℃ |
| Wireless Standard | Bluetooth®5.0 |
| Dimension | 100*60*30.5mm |

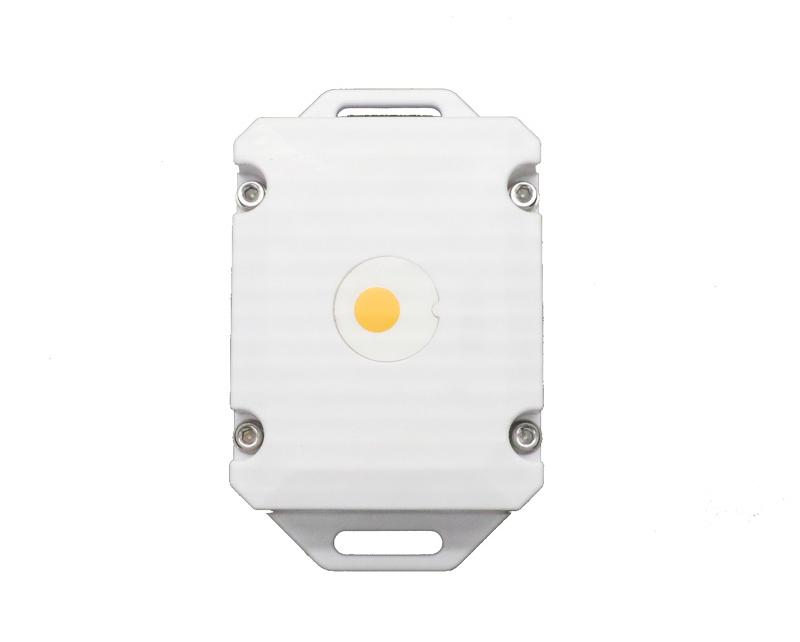

VDB09 is a non-demolition asset label Bluetooth beacon. Its broadcast protocol is consistent with the Bluetooth BLE broadcast protocol, including both the iBeacon (Apple) protocol and the Eddystone (Google) protocol. It is usually installed in a suitable location and periodically broadcasts to its surroundings, thus being scanned into its broadcast content by other Bluetooth devices, such as a Bluetooth gateway, and calculating the location information. Usually it is not connected by other BLE host devices, but it can be connected through the mobile APP, and modify its broadcast parameters, etc.
Features：
◆Low Energy
◆IP67
◆Support two-dimensional code, NFC customized content
◆Flexible application
◆Easy to Install
◆The broadcasting distance can reach 100 meters
◆Compliance with RoHS, FCC, CE standards
| Product parameters | |
| Dimension | 100*60*30.5mm |
| Battery | ER18505 (Lithium-ion batteries) |
| working temperature | -40℃~85℃ |
| Bluetooth parameters | |
| Wireless standard | Bluetooth®5.0 |
| frequency range | 2400MHz---2483.5MHz |
| Data rate | 1Mbps(Bluetooth ® 4.2)；2Mbps(Bluetooth ® 5.0) |
| modulation technique | GFSK |
| Wireless security | AES HW Encryption |
| Transmission power | -20~+4dBm |
| sensitivity | -96dBm at 1Mbps |
VDB09 is widely used in asset positioning management, object positioning and tracking, indoor positioning, indoor navigation, exhibition / Museum navigation, social check-in, advertising push, patrol inspection and other program applications.
1. VDB09 is used for asset positioning management, asset/item inventory, item positioning tracking, such as supermarket shopping vehicle positioning management, etc.;
2. VDB09 is used for indoor navigation systems, such as navigation in shopping malls, scenic spots guides, museum navigation, exhibition navigation;
3. VDB09 can also be used for advertising push and information push based on location information.Such as push commodity coupons.
