IOT WiFi Module

SKW95

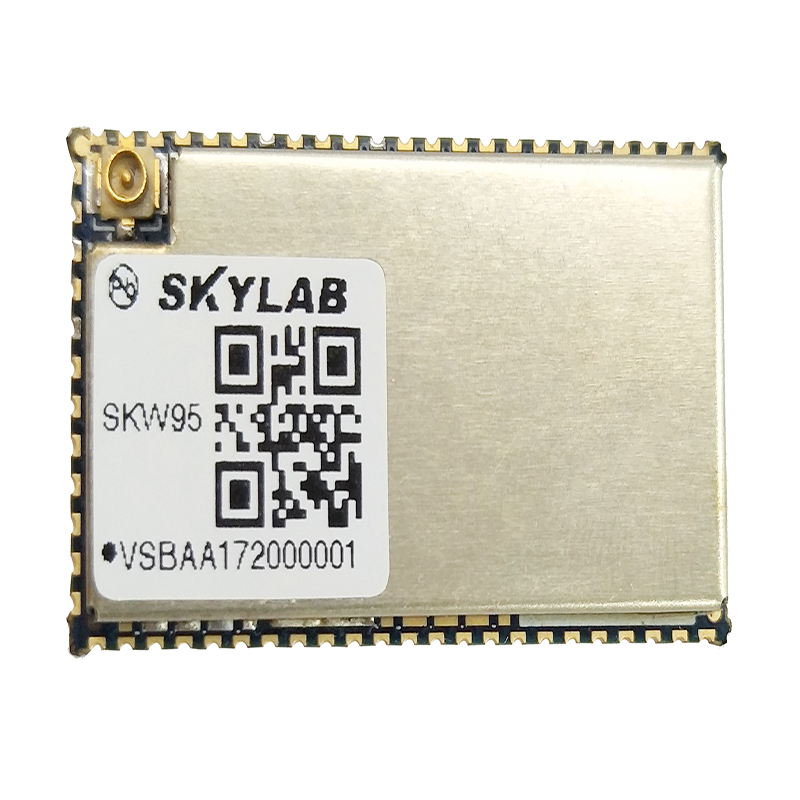

MT7688A USB Inverter IOT WiFi Module SKW95

The SKW95 WIFI module integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS CPU, 1-port fast Ethernet PHY,USB2.0 host, I2C/PCM and multiple slow IOS.

Read More
Antenna Type IPEX
Voltage 3.3V±5%
Dimension(L×W×H) 33.2mm*18.7mm*3.0mm

The SKW95 WIFI module integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS CPU, 1-port fast Ethernet PHY,USB2.0 host, I2C/PCM and multiple slow IOS.

The module provides two operation modes – IOT gateway mode and IOT device mode. In IOT gatewaymode,the high performance USB2.0 allows SKW95 to add 3G/LTE modem support or add a H.264 ISPfor wirelessIPcamera. For the IOT device mode, the module supports eMMC, SD-XC and USB2.0. In IOT devicemode, it further supports PWM, SPI slave, 3rd UART and more GPIOS. For IOT gateway, it can connect totouchpanel and BLE, Zigbee/Z-wave and sub-1G RF for smart home control.

MT7688A USB Inverter IOT WiFi Module SKW95
MT7688A USB Inverter IOT WiFi Module SKW95

Features:

◆ Compliant to IEEE 802.11b/g/n.

◆ 1T1R 2.4GHz with support for a 150Mbps PHY data rate.

◆ DDR2 memory up to 1024Mb.

◆ Flash memory up to 256Mb.

◆ 4 LAN ports and 1 WAN port.

◆ Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera.

◆ 24 STA-Proxy.

◆ Support interface: SD-XC, I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO.

◆ Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI.

◆ Support IOT gateway mode and IOT device mode .

◆ ROHS compliance meets environment-friendly requirement.

◆ FCC,CE compliance

MT7688A USB Inverter IOT WiFi Module SKW95
MT7688A USB Inverter IOT WiFi Module SKW95
Specification
Hardware Features
Model SKW95
Antenna Type IPEX
Voltage 3.3V±5%
Dimension(L×W×H) 33.2mm*18.7mm*3.0mm
Wireless Features
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412GHz---2.484 GHz
Data Rates IEEE 802.11b : 1,2,5.5,11Mbps
IEEE 802.11g : 6,9,12,18,24,36,48,54Mbps
IEEE 802.11n : MCS0--MCS7 @ HT20  MCS0--MCS7 @ HT40
Receiver Sensitivity HT40 MCS7 : -70dBm@10% PER(MCS7)
HT20 MCS7 : -73dBm@10% PER(MCS7)
54M: -77dBm@10% PER      11M: -89dBm@ 8% PER
Modulation Technique DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM,
Wireless Security WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI
Transmit Power IEEE 802.11n: 16dBm @HT20/40 MCS7
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
Work Mode IoT Gateway/IoT Device
Others
Certification RoHS
Environment Operating Temperature: -20℃~55℃
Storage Temperature: -40℃~125℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Application

◆ IOT (internet of things)
◆ 3G/4G WiFi Router
◆ USB WiFi Camera
◆ Building Automation
◆ Home Automation
◆ Smart Home Gateway
◆ Smart Lighting
◆ Smart Plug
◆ Industry Control
