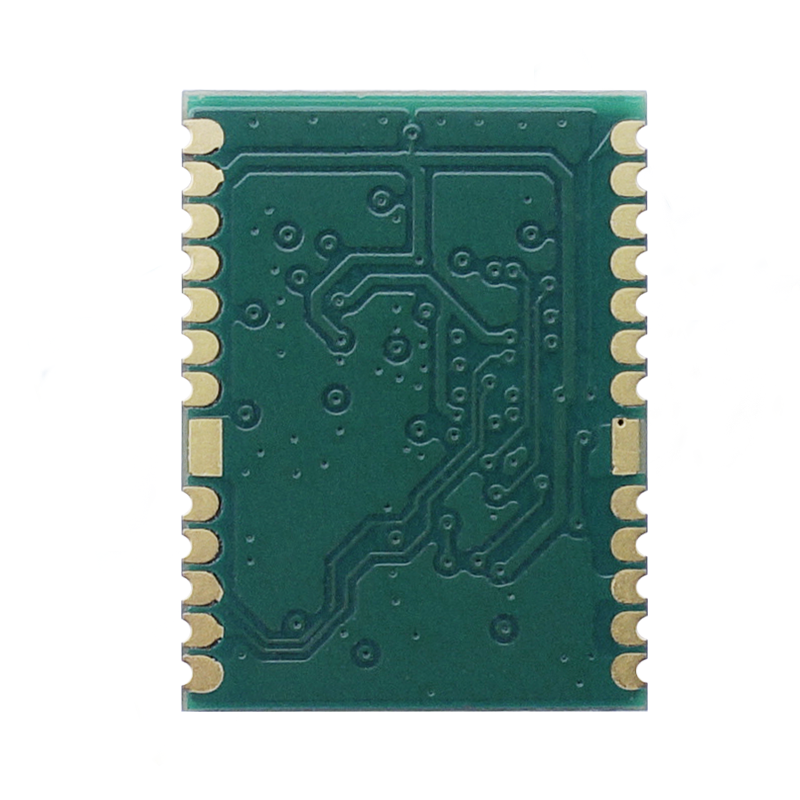

MT3331Small Size GNSS Positioning Module SKG12F

The SKG12F is a high-performance GNSS solution module that features super sensitivity, ultra low power and small form factor.

Read More
Chip MT3331
Receiver Type GPS/BDS/QZSS
Dimension(L×W×H) 16*12.2*2.4(mm)

The SKG12F is a high-performance GNSS solution module that features super sensitivity, ultra low power and small form factor. The RF signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

It is based on the high performance features of the MediaTek MT3331 single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GNSS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.

Features:

◆GPS only or BDS only or GPS+BDS or GPS+GLONASS

◆Ultra high sensitivity: -165dBm

◆ Extremely fast TTFF at low signal level

◆Built-in 12 multi-tone active interference canceller

◆ Ultra low power consumption

◆±25ns high accuracy time pulse (1PPS)

◆ Advanced Features: Always Locate; AIC; EPO;EASY

◆SBAS (WAAS,EGNOS,MSAS,GAGAN)

◆ Antenna Detection

◆ Small form factor: 16.2 x 12.2 x 2.4mm

◆ FCC CE compliance

◆ RoHS compliance (Lead-free)

Technical
Parameter Specification
Receiver Type GPS only or BDS only or GPS+BDS or GPS+GLONASS
Sensitivity Tracking -165dBm
Acquisition -148dBm
Accuracy Position <2.5m CEP50 (Typical Open Sky)
Velocity 0.1m/s without SA
Timing(PPS) 25ns RMS
Acquisition Time Cold Start 23s(Typical Open Sky)
Warm Start 2-3s
Hot Start 1s
Re-Acquisition <1s
Assisted GPS support EPO
Power Consumption Tracking 38mA @3.3V Typical
Acquisition 40mA @3.3V
Navigation Data Update Rate Max10Hz Default 1Hz
Operational Limits Altitude Max 18,000m
Velocity Max 515m/s
Acceleration Less than 4g
Application

◆ LBS (Location Based Service)

◆ PND (Portable Navigation Device)

◆ Vehicle navigation system

◆ Mobile phone
