GNSS Module

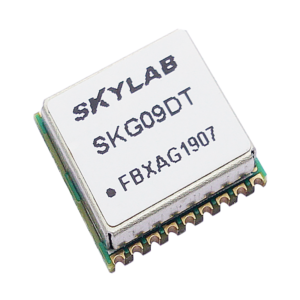

High-performance GNSS Timing Module SKG09DT

SKG09DT is a high-performance GNSS function super integrated solution timing module with high sensitivity, ultra low power and small volume.

Read More
Receiver type GPS L1,BD B1,GALILEO
Positioning accuracy 2.5m
Timing accuracy 10ns

The SKG09DT is a high-performance GNSS all-in-one solution module that features super sensitivity, ultra-low power and small form factor. The RF signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

It is based on the high-performance features of the single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GNSS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.



◆Ultra high sensitivity: -165dBm

◆ Extremely fast TTFF at low signal level

◆ Ultra low power consumption

◆ ±10ns high accuracy time pulse (1PPS)


◆ Small form factor: 10.1 x 9.7 x 2.2mm

◆ FCC compliance

◆ RoHS compliance (Lead-free)

◆ CE certificated

Parameter Specification
Receiver Type GPS L1,BD B1,GALILEO
Sensitivity Tracking:-165dBm Typica  Acquisition :-148dBm Typical
Accuracy Position:<2.5m CEP50 without SA(Typical Open Sky)
Velocity:0.1m/s without SA
Timing (PPS):10ns RMS
Acquisition Time Cold Start:23s(Typical Open Sky)
Warm Start:2-3s
Hot Start:1s
Power Consumption Tracking 23mA @3.3V Typical            Acquisition 30mA @3.3V
Navigation Data Update Rate Max 10Hz Default 1Hz
Operational Limits Altitude:Max 18,000m
Velocity:Max 515m/s
Acceleration:Less than 4g

◆ LBS (Location Based Service)

◆ PND (Portable Navigation Device)

◆ Vehicle navigation system

◆ Mobile phone
