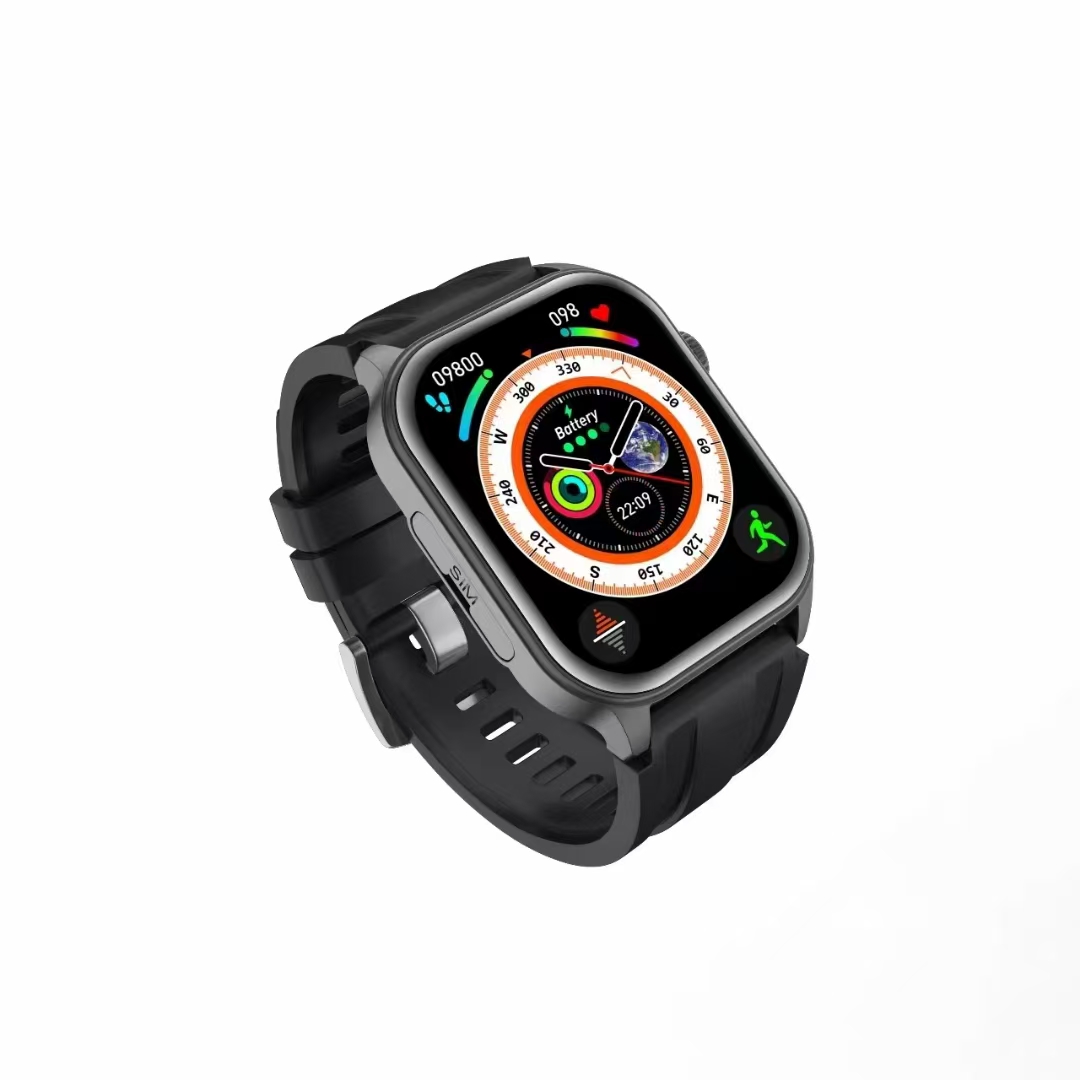

Indoor and outdoor integrated personnel positioning watch, equipped with a 2.0-inch color TFT screen, supporting both Chinese and English display and 1000 Message storage, equipped with SOS- key alarm (triggering real-time positioning + data upload) and electronic fence boundary crossing alarm It features and supports secure communication relying on 4G/SIM cards as well as the upload of Bluetooth broadcast packets once per second.
Read More| Positioning Accuracy | <1 M |
| Working Environment | indoor/outdoor |
| Working temperature | -20°C~60°C |
The indoor and outdoor integrated personnel positioning watch is equipped with a 2.0-inch color TFT screen, supporting both Chinese and English display and 1000 message storage. It features S0S one-click alarm (triggering real-time positioning + data upload) and electronic fence boundary crossing alarm It has an alarm function and supports secure communication relying on 4G/SIM cards as well as Bluetooth broadcast packet upload once per second.
It features an IP67 water resistance rating for daily use, with an operating temperature range of -20℃ to 70℃(industrial standard) and a storage temperature range of -40℃ to 85℃. It adopts a high-strength PC case and a custom strap structure design.
Positioning Functionality
Automatically switch between indoor and outdoor positioning modes, adopting triple positioning technologies of GPS/ Beidou dual mode (cold start <35 seconds, accuracy 5-10 meters), UWB TOF(accuracy <1 meter /400 meters), and Bluetooth (accuracy ≤5 meters). When Bluetooth fails
Automatically enable satellite positioning and maintain the last position information when there is no signal.
Health Monitoring
Integrated dynamic heart rate (accuracy rate 295%), blood oxygen (error rate 5%-109%) and body temperature monitoring (error <±5%), step counting, sleep analysis and drop detection through continuous acceleration and 0.1-second barometric detection, and support 1 minute
Adjustable timer upload and resume from breakpoint within 24 hours.
Battery & Charging

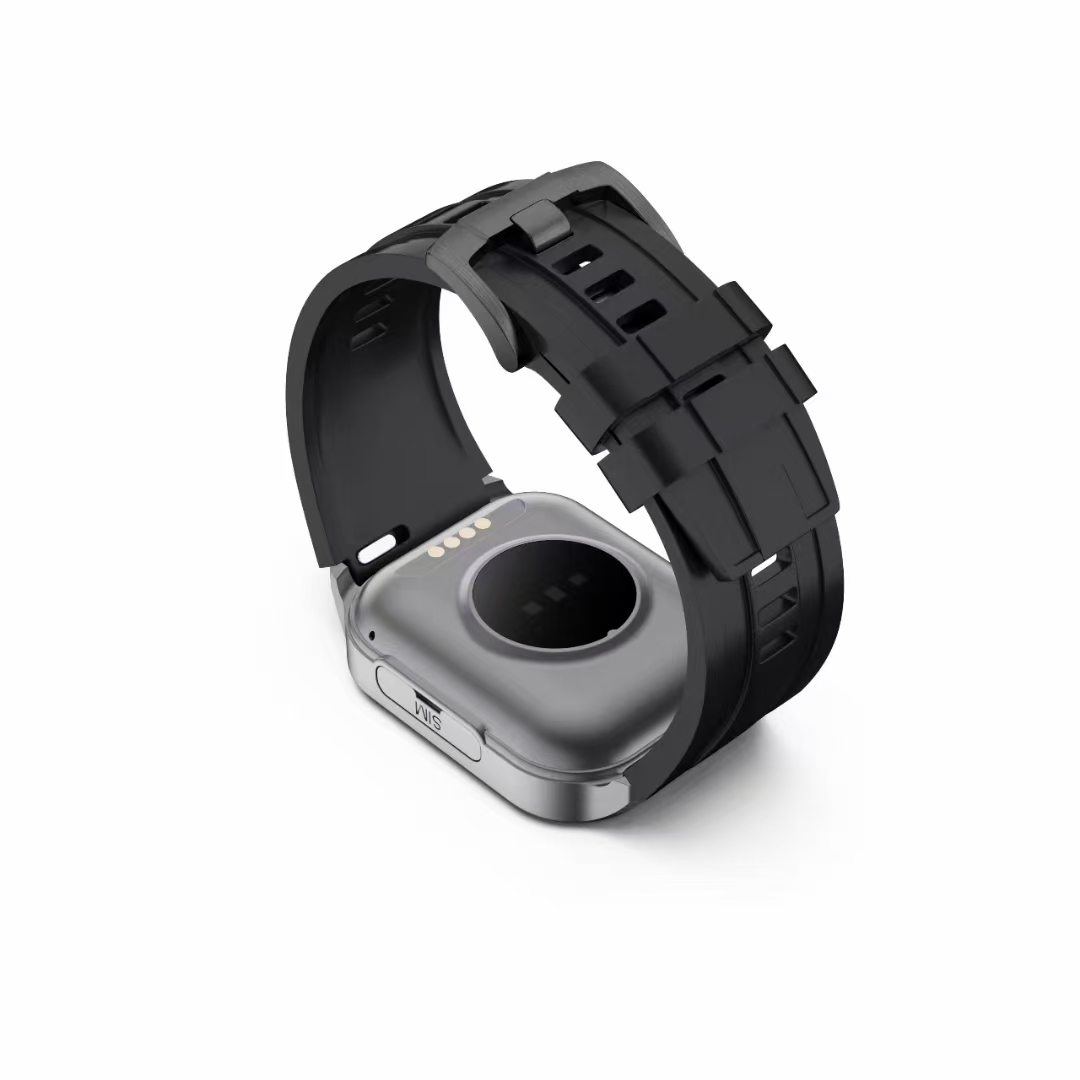

Equipped with a battery of over 800mAh, it supports 4G reporting every 10 minutes and UWB/GPS positioning for more than 30 hours in regular mode. In ultra-low power consumption mode, it can last up to 15 days (with positioning and 4G upload turned off), and it adopts magnetic adsorption Charging
| Working Parameter | Description |
| Bluetooth version | BLE 5.0 |
| Bluetooth chip | FR8008 |
| Power consumption | 2.0-inch TFT color display (capacitive touch) |
| Battery Capacity | ≥800mAh capacity (Full charge in ≤4 hours) |
| Theoretical Standby Time |
15-day standby (when stationary and not worn, location updates paused) |
| Theoretical Operation Time |
30+ hours operation (10-minute data reporting interval) - Activates when worn or in motion |

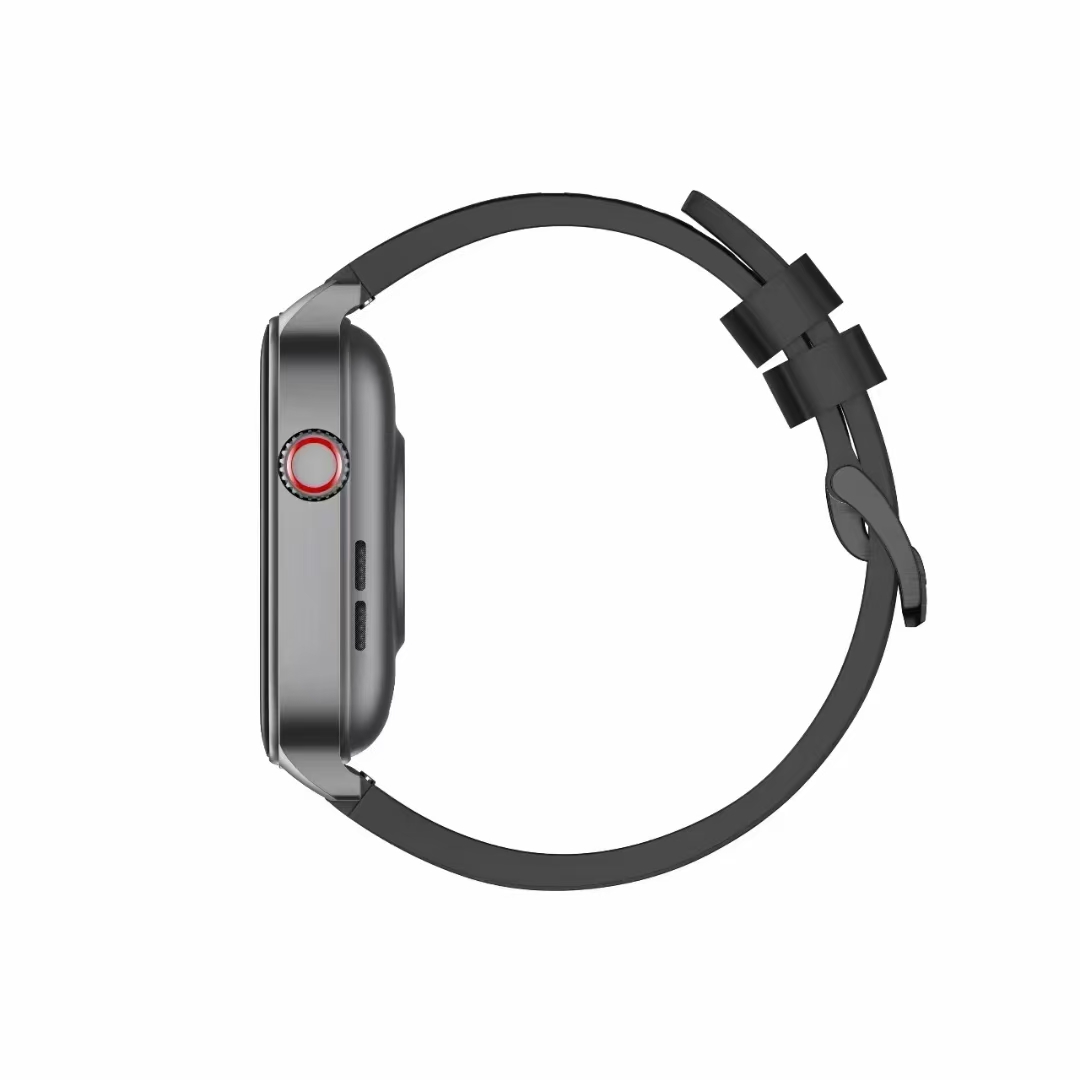

| Physical keys |
Two buttons (to achieve interactive functions such as on screen, off screen, back, function switching, and SOS). |
| IP rating | IP67 |
| FLASH | The chip has a built-in 128Mbit flash |
| Heart rate sensor | HX3690 |
|
Attitude sensor |
SC7A20 |
| GNSS positioning method |
Supports BeiDou-only mode and GPS/BeiDou hybrid positioning |
| UWB frequency band | CH2,CH5 |
|
Environmental parameters |
Operating temperature: -20°C to 60°C
Working humidity: -10% to 85% HR |
| Barometer |
MP3533, accuracy 10cm |
| Anti-disassembly function |
Wrist detachment detection, detachment detection |
| 4G frequency band |
Domestic full network access |
| Bluetooth function
（BLE 5.0/5.1） |
Transmission distance: >10m in open environment
Positioning coverage: 10m radiusPositioning Assistance: Supports iBeacon-based indoor positioning with ≤5m accuracy |
1. Child safety monitoring:
Real-time tracking of children's movements, supporting intelligent switching between outdoor satellite positioning (such as GPS, Beidou, etc.) and indoor network positioning (base stations, WLAN), suitable for scenarios such as schools, homes, shopping malls, etc Children can accurately track their locations through the APP, set up electronic fence warnings, and ensure the safety of children's activities.
2. Elderly health care:
Monitor the location and health status of the elderly (some watches integrate heart rate, blood oxygen and other vital sign monitoring) to prevent them from getting lost. It is suitable for nursing homes, communities and home environments, and is provided for elderly people living alone or with mobility issues For security guarantee.
3. Industrial personnel management:
In scenarios such as petrochemical plants, open-pit mining areas, port terminals, wind power/thermal power stations, etc., achieve personnel positioning, identity recognition, access control and attendance, and dangerous area alarm, combined with electronic fences Trajectory tracking enhances the efficiency of operation safety management.
4. Smart elderly care services:
Provide seamless indoor and outdoor positioning services for the elderly, making it convenient for elderly care institutions or family members to keep track of the elderly's activities in real time. It is especially suitable for large elderly care communities to ensure the safety of the elderly's activities.
5. Navigation in large public places:
In places such as shopping malls, airports, hospitals, and high-speed railway stations, we provide users with integrated indoor and outdoor navigation to quickly guide them to their destinations (such as shops, boarding gates, and clinics), enhancing the travel experience.
6. Emergency rescue scenarios:
In emergency situations (such as earthquakes and fires), quickly locate the positions of trapped people, assist rescue teams in efficiently carrying out rescue operations, shorten search and rescue time, and increase the success rate of rescue.
7. Intelligent logistics management:
Real-time tracking of goods and vehicle locations, optimization of transportation routes, monitoring of the distribution process, applicable to warehousing and transportation links, enhancing the transparency of logistics operations and management efficiency
8. Special operation scenarios:
Supports the combination of high-precision positioning by outdoor Beidou and centimeter-level positioning by indoor UWB, suitable for scenarios such as geological exploration, pipeline inspection, substation/road construction, etc., meeting the needs of people in complex environments Personnel positioning and safety supervision requirements.
