The VDU02, developed based on the DW3000 chip, integrates TOF and TDOA algorithms to deliver enhanced positioning accuracy and system robustness. Certified to Ex ib IIC T6 Gb standards, it meets all explosion-proof requirements for hazardous environments. With an IP68 protection rating, the device ensures 7-8 years of maintenance-free operation in real-world applications.
Read More| Chip | DW3000 |
| Positioning accuracy | 0.1-0.5m |
| Coverage range | 100 meters |
The VDU02 UWB beacon, developed using the DW3000 chip, combines TOF and TDOA algorithms to significantly enhance positioning accuracy and system robustness. Delivers 10-50cm pinpoint accuracy in open spaces with a maximum deployment spacing of 100m.IP68-certified for harsh environments, delivering proven 7+ years of continuous operation without maintenance.

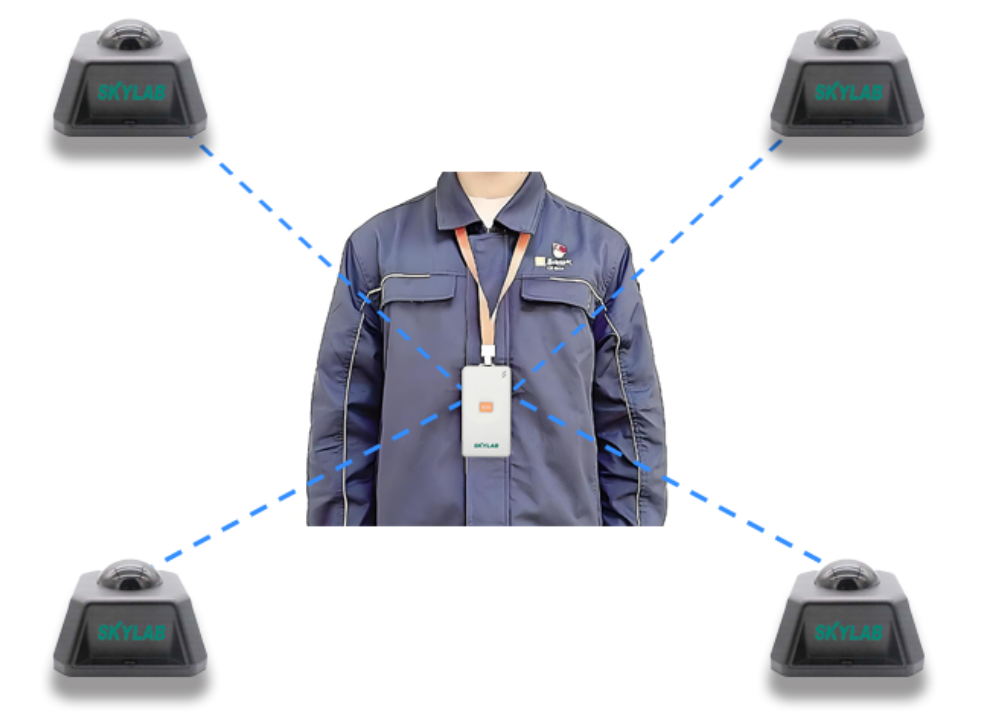

This system is widely deployed across industrial and commercial environments including chemical plants, power stations, coal mines, nursing homes, hospitals, rehabilitation centers, exhibition halls, and warehouses. When integrated with UWB tags, it enables:
• Personnel tracking
• Vehicle localization
• Equipment monitoring
| Technical Specifications | |
| Positioning Method | Self-developed ultra-low power fusion algorithm |
| Positioning Accuracy | Up to 0.1 meters in completely unobstructed conditions |
| Coverage Range | Up to 100 meters in completely unobstructed conditions |
| UWB Frequency | 3.75-4.25GHz |
| Transmission Power | Adjustable transmission power: -39 to 23 dB |
| Built-in Battery | 38Ah |
| Usage Time | Designed for 10.5 years, actual usage can reach 7-8 years |
| Antenna Type | Built-in omnidirectional antenna |
| Housing Material | ABS+PC mixed VO-level flame-retardant material |

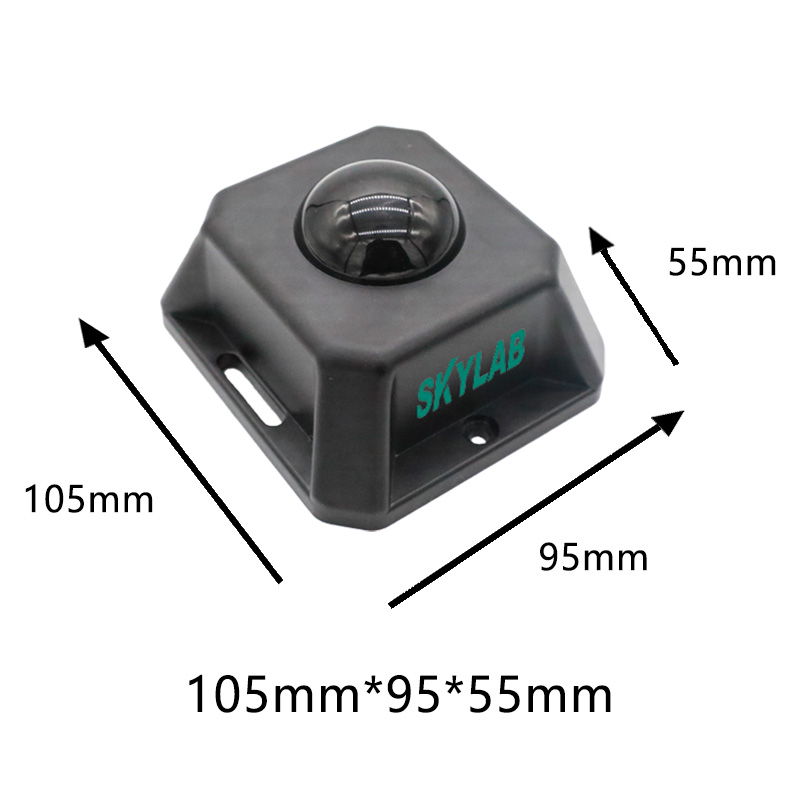

| Product Dimensions | 105*95*55mm (LWH) |
| Product Weight | 500g |
| Installation Method | Wall-mounted/ceiling-mounted with straps, screws,
adhesive, etc. (supports camera bracket installation) |
| Operating Temperature | -40℃～+85℃ |
Wireless UWB Positioning Base Station Installation Method
UWB base stations support two mounting methods: wall-mounted and pole-mounted, adaptable to site conditions. The installation kit primarily includes a screw hardware pack for flexible deployment
Three Flexible Mounting Solutions for Any Environment
Retrieve the following from the installation kit:
a. Rcrew hardware pack (M6 stainless steel screws included)
b. Mounting bracket
c. UWB base station unit
Installation:
a. Align bracket with pre-marked wall positions
b. Secure bracket using provided screws (recommended torque: 8 N·m)
c. Snap base station onto bracket until fully engaged
Two Installation Options Available
Select Preferred Method
