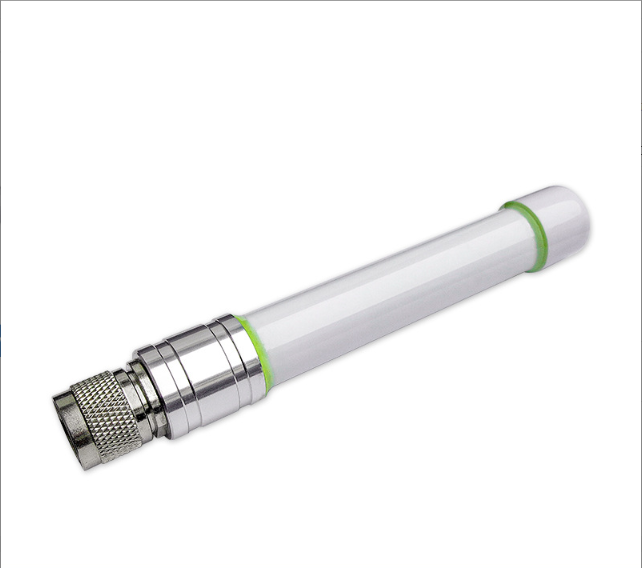

The HDX-UWB antenna is designed to be integrated onto a DW1000-based tag or anchor design.
Read More| Input power | 50W |
| Frequency Range | 2300-6500MHz |
| Dimension | Ф20×160mm |
The HDX-UWB antenna is designed to be integrated onto a DW1000-based tag or anchor design. It is designed specifically to work with SKYLAB’s DW1000 UWB transceiver providing a low-cost, high-efficiency solution with excellent fidelity and low group delay variation with antenna orientation.
Applications：
(1) The HDX-UWB antenna is integrated on the UWB tag. It is used as the antenna of the uwb tag.
(2) The HDX-UWB antenna is integrated into the UWB base station. It is used as the antenna of uwb base station. As shown in the figure below, the HDX-UWB antenna is integrated into the UWB positioning dual base station VDU2506D for use.
| Electrical Specifications | |
| Frequency Range | 2300-6500MHz |
| VSWR | ≤2.5 |
| Gain | 4.0dBi |
| Horizontal beam width | 360° |
| Vertical beam width | 55° |
| Polarization | Vertical |
| Input Impedance | 50Ω |
| Maximum input power | 50W |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | N-Male |
| Dimensions | Ф20×160mm |
| Antenna weight | 0.11kg |
| Radome material | Fiberglass |
| Radome color | White |
| Operating temperature | -40°c～60°c |
| Rated Wind Velocity | 60 m/s |
| Installation mode | Use with suction cup and other mounting seat |
