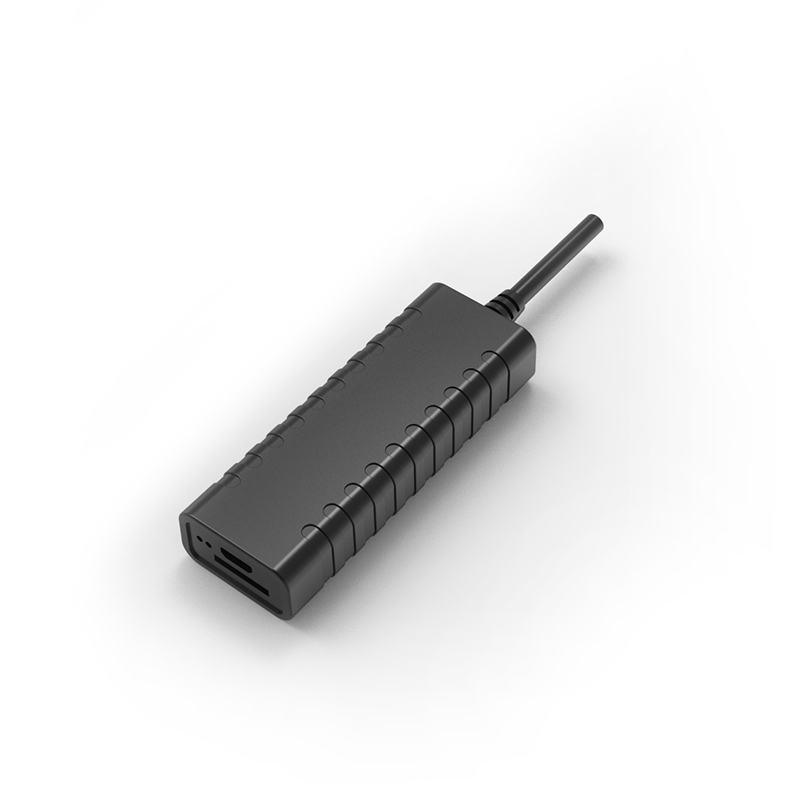

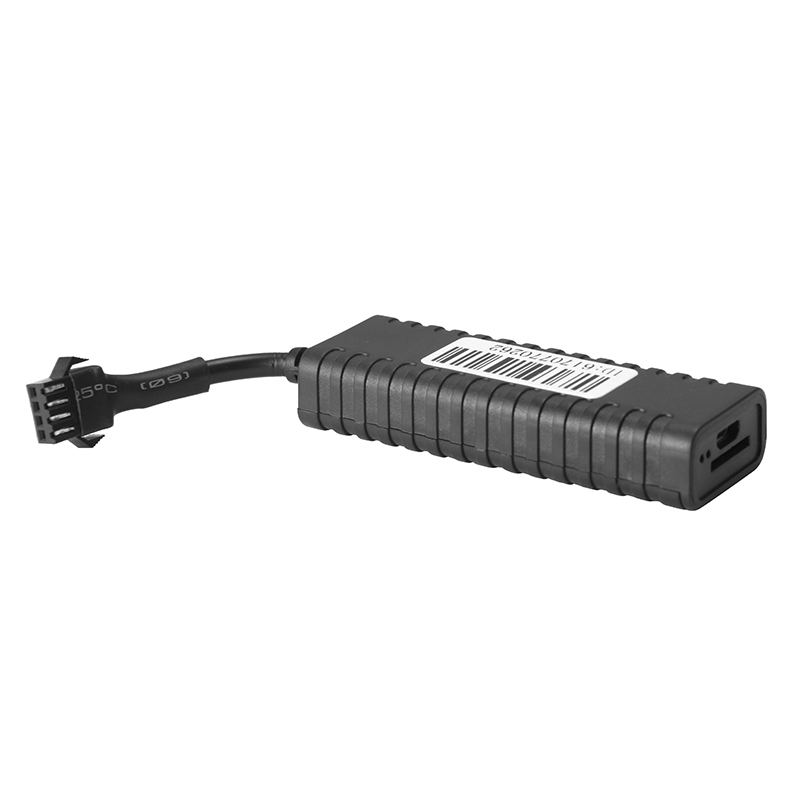

GT23 is a GPS positioning device used for vehicle rental tracking. The positioning device integrates GSM wireless communication technology and GPS/BDS satellite navigation and positioning technology. The positioning device adopts an industrial-grade high-integration full built-in antenna design, and the device has a built-in 3-axis sensor. Power saving wake up work.
SKGT23 GPS positioning equipment has the functions of DC detection, ACC detection, vibration alarm, power failure alarm, overspeed alarm, illegal start alarm, and remote oil and power cutoff. The positioning device is equipped with a global positioning service platform to achieve real-time acquisition, tracking and positioning functions of vehicle data.
◆The positioning device supports multiple alarm functions such as vibration alarm, power failure alarm, overspeed alarm, illegal start alarm, and displacement alarm.
◆The positioning device can be connected to an external oil-cutting relay/wireless oil-cutting accessory, which supports the function of cutting off the oil circuit/circuit of the monitored object, and realizes functions such as cutting off oil and electricity.
◆The positioning device supports the electronic fence function. Users can delineate a virtual electronic fence through the platform/APP. When the device enters or exits the fence, it can be recognized by the platform and an alarm will be issued.
◆The positioning device can send an alarm text message/phone call to the monitoring number when an alarm occurs, and the alarm will be uploaded to the platform at the same time.
◆The positioning device adopts industrial-grade high-stability GPRS module, built-in GSM high-sensitivity antenna, supports TCP/IP data transmission, and supports domain name/IP address connection to the server.
◆The positioning device has a built-in 3-axis acceleration sensor, which integrates precise acceleration algorithms to obtain real-time vehicle status judgments such as the current attitude of the vehicle.
◆The positioning equipment has a high-sensitivity GPS/BDS dual-satellite positioning module, an anti-jamming ceramic antenna, the satellite search signal is more stable, and it supports AGPS fast positioning tracking and synchronous timing;
◆When the positioning device is in sleep mode, abnormal vibration alarms and other vehicles will automatically report messages when the vehicle starts, stops, and sleeps.
◆The positioning device is in the low-power and energy-saving mode, and accurately judges the ignition and flameout status of the car. In the intelligent sleep and wake-up mechanism, it can reduce the average power consumption of the whole system.
|Electrical Characteristics||Power supply||Battery powered|
|Working voltage range||DC 9V - 95V|
|Built -in battery capacity||80 mAh|
|Environmental character||Operating temperature range||-20℃ - 75℃|
|Storage temperature range||-30℃ - 80℃|
|Working humidity range||10%-85% RH|
|Communication characteristics||chip model||MT6261D|
|Communication band||Support 2G||850/900/1800/1900MHZ|
|SIM card||Standard SIM card|
|Communication antenna||Built in antenna|
|Antenna specification||FPC antenna|
|GPS/BD Positioning properties||chip model||AT6558D|
|Cold start time||Average 32 seconds|
|Hot start time||Average 1 second|
|Track sensitivity||-162 dBm|
|Positioning antenna||Built in antenna|
|Antenna specification||18mm * 18mm * 4mm|
|GPS frequency band||L1: 1575.42±1.023MHz|
|Beidou frequency band||B1: 1561.098±2.046MHz|
|Satellite channel number||50|
|Speed measurement accuracy||<0.1m/s（1σ）|
|External interface||Oil -breaking||One circuit relay can be connected externally|
|Outline specification||Host size (length, width and height)||77mm * 28mm * 15mm|
|Shell material||ABS plastic|
◆Auto Insurance Industry
◆Enterprise Fleet Industry
◆Car manufacturers/4S shops
◆Personal car user
