Industrial Drone

ARK 60

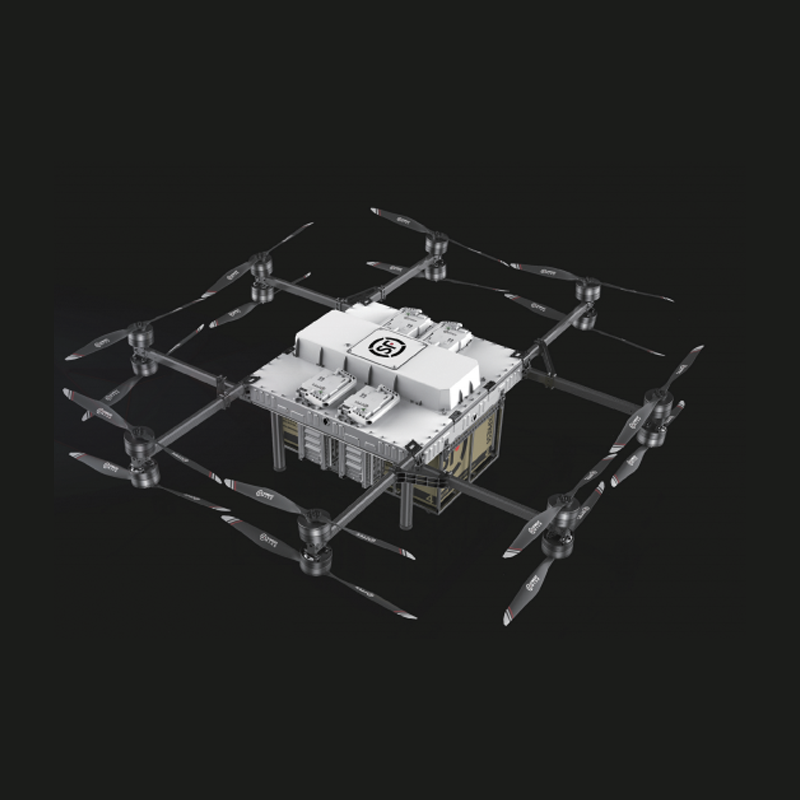

16-Rotor Cargo Heavy Load Logistics Drone ARK 60

The ARK Series 60 UAV adopts a sixteen-rotor layout. It has a multi-redundant navigation system.

Read More
Max Payload 20KG
Flight time 10min
Dimension 2.312×2.312×0.42m

The ARK Series 60 UAV adopts a sixteen-rotor layout. It has a multi-redundant navigation system, flight control system, power system and power system. It is also equipped with an emergency landing system with high reliability and safety.

In addition, the aerodynamically optimized propeller makes it have higher flight efficiency. Through the on-board visual positioning system, it can also complete the precise landing. The Ark UAV is suitable for short- and medium-distance terminal distribution business, and the large-volume warehouse of more than 60 liters enables this model to meet the needs of more transportation tasks.



Specifications
Specifications Description
Maximum Payload 20KG
Maximum Total Takeoff Weight 60KG
Flight time 10min
Cruise Speed 20M/S
Maximum altitude 5000m
Maximum pitch angle 25°
Maximum vertical climb speed 4m/s
Wind resistance Level 6
Operating temperature -20~45℃
Dimension 2.312×2.312×0.42m
Application

◆Express Delivery

◆Fresh Product Delivery

◆Medical Cold Chain

◆Safety inspection

◆Emergency Rescue

◆Forestry application

Q&A
1. who are we?
We are based in Guangdong, China, start from 2006,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(15.00%),Northern Europe(14.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),South America(4.00%),Southeast Asia(3.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
