Industrial Drone

SKYLLE 1550P

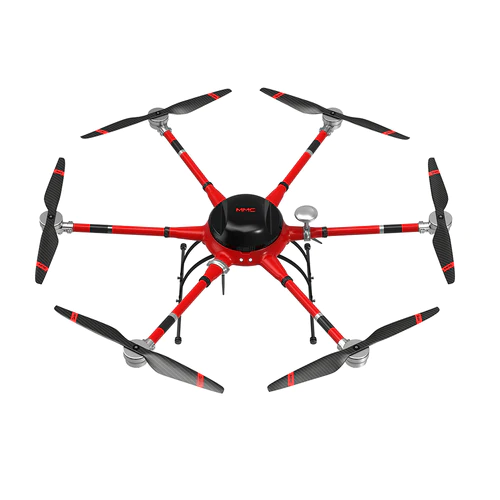

Long Endurance and Heavy Load Six-rotor UAV SKYLLE 1550P

With high reliability and portability, Skylle 1550P UAV adopts a new generation power system to improve load capacity and flying performance.

Read More
Wheelbase 1550 mm
Max payload 15kg
Max flight Time 45-60min

With high reliability and portability, Skylle 1550P UAV adopts a new generation power system to improve load capacity and flying performance. Equipped with Atheno flight control, HD low latency video transmission, high-voltage battery, it is compatible with multiple payloads and has a 15kg load capacity. Skyline 1550P could provide high-performance flying platform for the industrial aerial and drone industry.

Features:

◆Carbon fiber unibody endures robust endurability, light weight and rain-proof

◆Detachable arms allow for quick dissemble and assemble as well as smaller package

◆One-key to make route planning for autonomous flying and ground station flight guidance.

◆High density LiHV with efficient power system results in max 15 kg load.

Technical
Basic
Mode Skylle 1550P
Aircraft type Hexrcopter
Wheelbase 1550 mm
Height 543 mm
Weight 8.8 kg(no battery)
Package size 400*730*930(including wheel)mm
Performance
Battery capacity 22000 mAh*6s*2 22000 mAh*6s*4
Free-load max flight Time 45 min 65 min
Max take-off load 34 kg
Loaded flight time 25 min(@15 kg)
Max payload 15 kg
Cruise speed 0-15 m/s
Climb speed 0-4 m/s
Max. altitude AMSL 4000 m
Network video transmission distance 10 km
Remote control distance 10 km (standard radio)
Environment
Wind resistance 12m/s (grade 6)
Operation temperature -20℃-60℃
Operation humidity 10%-90% no condensation
IP rating IP54
EMI 100A/m (PFMF)
1. who are we?
We are based in Guangdong, China, start from 2006,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(15.00%),Northern Europe(14.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),South America(4.00%),Southeast Asia(3.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
