Industrial Drone

ARK 40

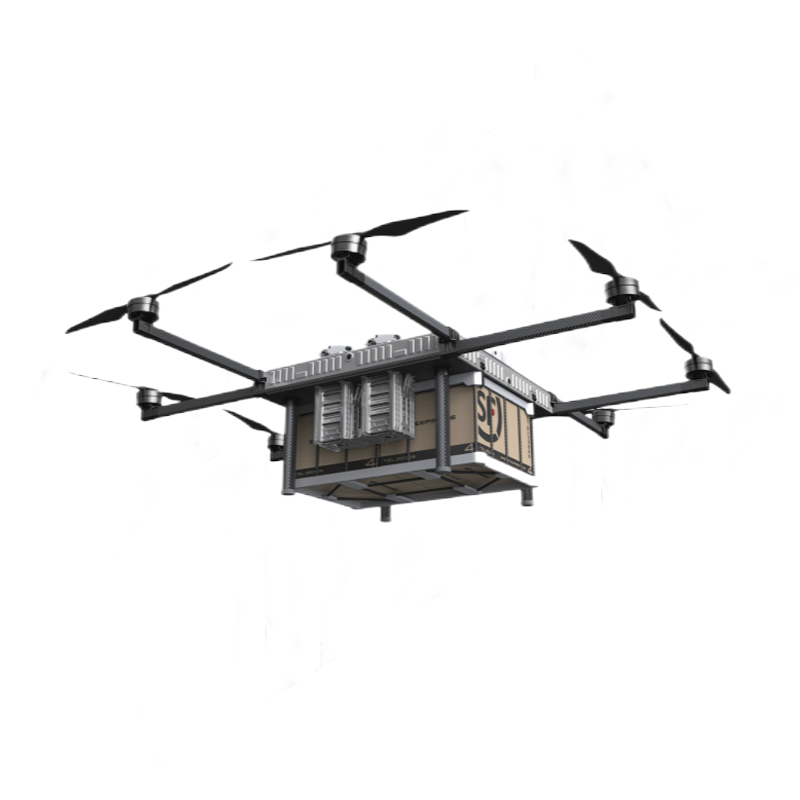

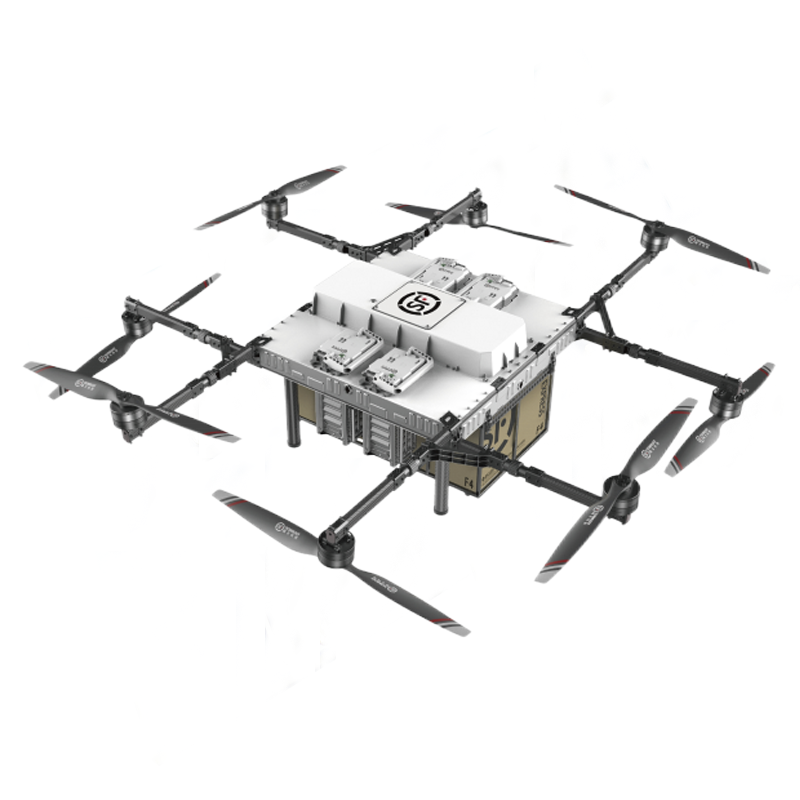

Large Load Logistics Transport Drone ARK 40

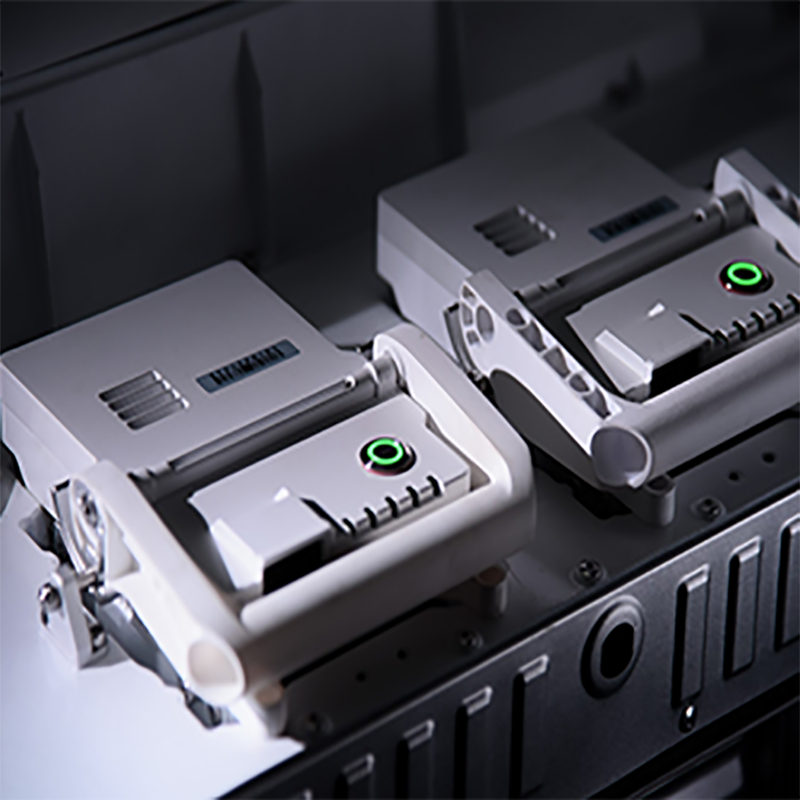

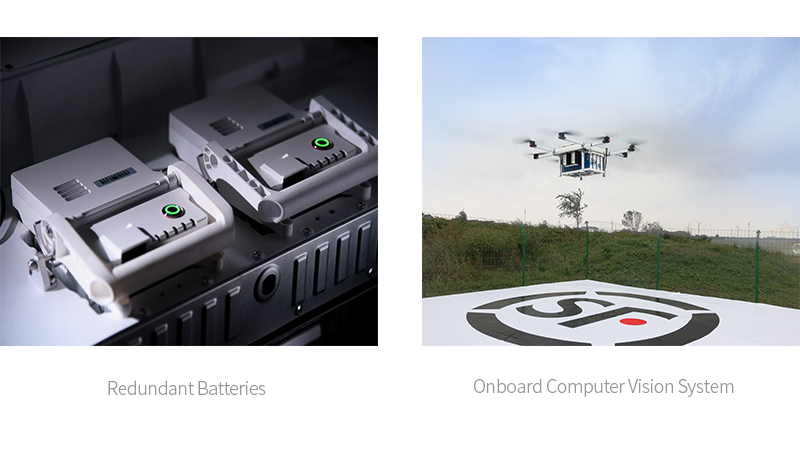

ARKUAV 40 is a drone with octocopter configuration. It has redundant navigation system, flight control system, propulsion system and battery system, and is equipped with emergency landing system.

Read More
Max Payload 10KG
Flight time 22min
Dimension 2.362*2.362*0.42m

ARKUAV 40 is a drone with octocopter configuration. It has redundant navigation system, flight control system, propulsion system and battery system, and is equipped with emergency landing system. With these features, the reliability and safety of Ark are at the top level in the industry. Moreover, the design of propeller is optimized in cruise flight condition to achieve a longer range. Ark is designed for short-to-middle range end delivery mission. Its payload volume is more than 50L, which makes it suitable for many cargo delivery scenarios.

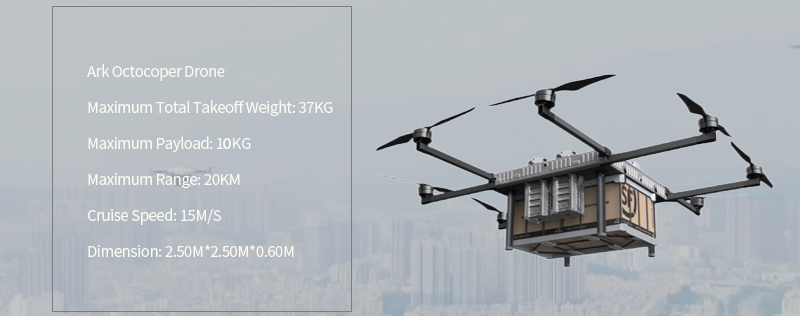

Specifications
Specifications Description
Maximum Payload 10KG
Maximum Total Takeoff Weight 35KG
Flight time 22min
Maximum Range 20KM
Cruise Speed 20M/S
Maximum altitude 5000m
Maximum pitch angle 25°
Maximum vertical climb speed 4m/s
Wind resistance Level 7
Operating temperature -20~45℃
Dimension 2.50M*2.50M*0.60M
Application

◆Express Delivery

◆Fresh Product Delivery

◆Medical Cold Chain

◆Safety inspection

◆Emergency Rescue

◆Forestry application

Q&A
1. who are we?
We are based in Guangdong, China, start from 2006,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(15.00%),Northern Europe(14.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),South America(4.00%),Southeast Asia(3.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
